Quick Details

• Place of Origin:

  Sichuan, China

• Delivery Time:

  0

• Packing:

  265*260*330mm 1000pcs/carton260*330*330mm 2000pcs/carton

• Delivery Port:

  Shanghai

• OE Experience:

  No

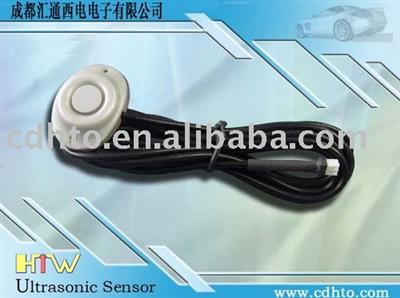

Product Name:HT-XX-22B/16B2, parking sensor Certifications:ISO9001

HT-XX-22B/16B2, parking sensor Certifications:ISO9001

Application

universal

Product Description:

I. Specifications of the assembled parking sensor:Nominal Frequency   ( kHz )                   40±1   Capacity                   (   pf  )               2000±15% Sound Pressure Level (  dB )                 120±5  Sensitivity                  (  dB )                 -65±5   Ring Time                  (  ms )                  ≤ 1.2   Resistance                (   Ω   )                  500Directivity                   (   °  )                90±5Max. Input Voltage      ( Vp-p )                  150Operating Temp. Range(  °C  )              -35±80  Storage Temp.             (   °C )              -40±85

Chengdu HuiTong West-electronic Co., Ltd (HTW) is a leading manufacturer of Ultrasonic Sensor for car parking system in China.

HTW's predecessor was one of the earliest enterprises who started to do research and produce piezoelectric ceramics for the war industry in ...[Read More]

Company Profile:

• Main Product:

  (We Sell): Ultrasonic sensor,parking sensor,probe,piezoelectric ceramics

• Business Type:

  Manufacturer

• Current Export Market:

  North America, Western Europe, Eastern Asia, Southeast Asia, Mid East
