Quick Details

• Rated Line Pull:

  15000lb(6804kg)single line

• Motor:

  4.2kw/5.6ph 12v/6.17hp/4.6kw 24vSeries wound motor

• Control:

  Remote switch

• 12’(3.7)lead:

  Gear Train

• 3-stage planetary Gear:

  Gear Reduction Ratio

• 312.4:1:

  Drum size(Dia.xL)

• Ф85mmx221.5mm(3.35"x8.72"):

  Cable(Dia.xL)

• 11mmx28m(0.433"x91.86"):

  Fairhead

• 4-way rolle fairlead:

  Overall Dimension(LxWxH)

• 21.5”x7.09”x9.73”(547mmx180mmx247mm):

  Packing Size

• 60x23x38.5cm:

  1pc/ctn

• Place of Origin:

  China Mainland

• Samples:

  Charge

• Sample Price:

  Inquiry

• Delivery Time:

  Within 35 Days After Receiving The Payment

• Packing:

  Color Box+Carton

• Delivery Port:

  Shanghai Or Ningbo

• Max. Production Capacity:

  10000Unit/Month

• Export Ratio:

  91% - 100%

• OE Experience:

  No

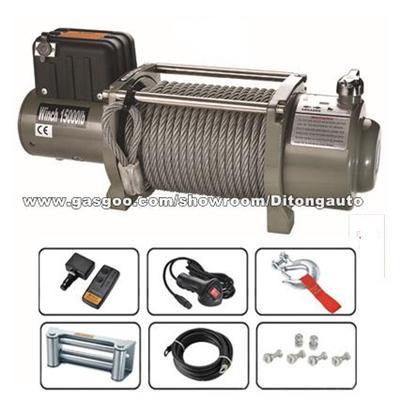

Product Name:CE Certificate 15000lbs Heavy Duty Truck SUV Jeep Electric Winch

CE Certificate 15000lbs Heavy Duty Truck SUV Jeep Electric Winch

Application

ATV UTV JEEP SUV Car

Product Description:

15000lbs Heavy Duty Truck SUV Jeep Electric Winch
Specification:

Rated Line Pull	15000lb(6804kg),single line
Motor	4.2kw/5.6ph 12v/6.17hp/4.6kw 24vSeries wound motor
Control	Remote switch,12(3.7)lead
Gear Train	3-stage planetary Gear
Gear Reduction Ratio	312.4:1
Clutch	Flexible Operation,Water-resistant
Braking Action	Automatic drum brake
Drum size(Dia.xL)	85mmx221.5mm(3.35"x8.72")
Cable(Dia.xL)	11mmx28m(0.433"x91.86")
Remote Control	Included
Fairhead	4-way rolle fairlead
Battery	Recommended :minimum 650CCA
Battery Cable	2 gauge,72(183mm)
Coating	Dark gray power coat
Overall Dimension(LxWxH)	21.5x7.09x9.73(547mmx180mmx247mm)
Mounting Bolt	254mmx114.3mm(10"x4.5")
Weight	N.W/G.W:53kg/55kg
Packing Size	60x23x38.5cm,1pc/ctn
