Quick Details

• Place of Origin:

  China Mainland

• Samples:

  Charge

• Sample Price:

  Inquiry

• Delivery Time:

  Within 35 Days After Receiving The Payment

• Packing:

  Color Box+Carton

• Delivery Port:

  Shanghai Or Ningbo

• Max. Production Capacity:

  10000Unit/Month

• Export Ratio:

  91% - 100%

• OE Experience:

  No

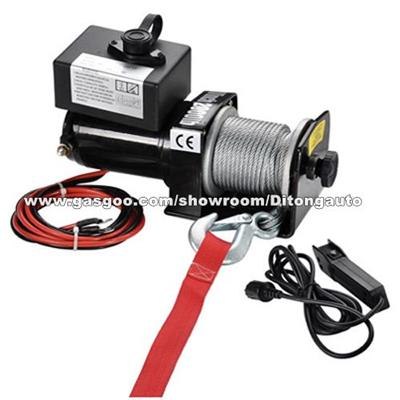

Product Name:CE Certificate 2000LBS 12VDC Self Recovery Electric Winch For ATV UTV Jeep Truck Trailer SUV

CE Certificate 2000LBS 12VDC Self Recovery Electric Winch For ATV UTV Jeep Truck Trailer SUV

Application

ATV UTV JEEP SUV Car

Product Description:

2000LBS 12VDC Self Recovery Electric Winch for Jeep Truck Trailer SUV CE
Model:EW2000
Quick Details
Product feature:
1.Free Spooling Clutch
2.Automatic Breaking Action
3.Specially designed diferential planetary gearing for heavy utu
4.Solenold control box supplied
Certificate:
CE certification
Specifications:

Rated Rope Tension	Single Rope:2000lb(907kg)
Motor	Permanent magnet motor,0.7kw/0.9hp 12v;0.8kw/1.0hp(24v)
Gear Reduction Ratio	153:1
Cable(Dia.xL)	:5/32x49(4mmx15m)
Drum Size(Dia.xL)	:1.24x2.88(31.5mmx73mm)
Overall Dimensions(LxWxH)	11.2x4.1x4.1(285mmx105mmx105mm)
Mounting Bolt	3.13(79.5mm)
Packing Size	34x24x34cm,2pcs/ctn
Weight	N.W/G.W:13KG/14KG

Line speed,Motor Current and Line Pull(First Layer)

Line Pull lbs(kgs)	Line Speed ft/min(m/min)	Current A
	12V DC 24V DC	12V DC 24V DC
0	10.5(3.2) 11.8(3.6)	12 6
500(227)	9.2(2.8) 10.2(2.8)	25 10
1000(454)	7.5(2.3) 8.5(2.6)	40 15
1500(680)	5.9(1.8) 6.9(2.1)	60 25
2000(907)	3.3(1.0) 3.6(1.1)	90 55

Line Pull and Cable Capicity

Layers of wire rope	Rated Line Pull Per Layer LBS(KGS)	Length of wire rope wound on drum ft(m)
1	2000(970)	6.5(2.0)
2	1630(739)	14.0(4.3)
3	1380(626)	22.0(6.8)
4	1190(540)	31.0(9.5)
5	1050(476)	41.0(12.5)
6	940(426)	49.0(15.0)

Zhangjiagang Bonded Area Ditong Auto Accessories Co., Ltd , is one of the leading company in producing Ratchet Buckle, Ratchet Components, Overcenter Buckle ,Cargo Lashing and Webbing Slings. It is located in Zhangjiagang Bonded Area,Jiangsu Province, China, with the port to export the goods ...[Read More]

Company Profile:

• Main Product:

  Electric Winch, Ratchet Straps, Ratchet Tie Down, Cam Buckle Tie Down, Tow Straps, Webbing Sling Etc

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

• Total Annual Sales:

  USD 2,000,001 - 5,000,000

Factory Profile:

• Number of Employees:

  51 - 100 People

• Shift:

  1

• Size of Factory In Square Meters:

  10000

• Years of OEM Experiences:

  6

Research & Development:

• Capability for Synchronized Development:

  Develop according to drawing or samples provided by clients?Yes

  Develop 3-D model and prototype according to client's needs?Yes

• Tooling Design:

  Design Internally

• Source of Tooling:

  Made Internally

• Software/Profile:

  Unigraphics, AUTOCAD, Autodesk Inventor, Pro/E, Catia
