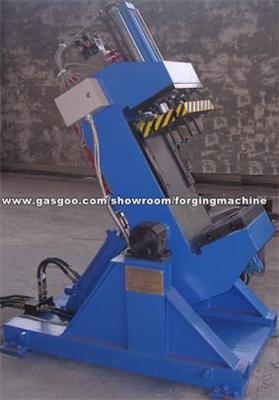

The machine is mainly used in the production of aluminum alloy auto cylinder heads casting and alse can be used for producting motorcycle cylinder heads casting.
The machine comprises mainframe(including clamping device,side core pull device of fixed die plate,frame,safety device),hydraulic system, refractory holding furnace, servo pressure system,electric control system,die cooling system.
1.Main Body
| No. | Description | Specification | Unit |
| 1 | Fixed die plate | 2000X1600x120 | mm |
| 2 | Movable die plate | 1780X1280x100 | mm |
| 3 | Upper die plate | 1750X1250x100 | mm |
| 4 | space between guiding rods | 1400X900 | mm |
| 5 | Movable die plate stroke | 1050 | mm |
| 6 | Close height | 795 | mm |
| 7 | Open height | 1845 | mm |
| 8 | Main Cylinder Opening Force | 176 | KN |
| 9 | Main Cylinder Closing Force | 120< |
