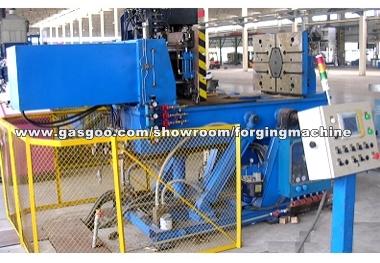

J452 type 200Kg low-voltage casting electromechanical gas control system by the host action control system and liquid surface pressure in real time
The control system has two parts components.
The J452 low-voltage casting electromechanical gas control system uses PLC as the lower control core with 15 inches
The integrated industrial control machine acts as the upper monitoring and management machine, and realizes the automatic sequential action control and liquid surface of the low-pressure casting machine real-time closed-loop feedback control and mold cooling control of the pressurized pouring process, and the pouring process parameters can be set and modification, pressure pouring curve display, machine operating status and fault alarm display, storage of pouring data statistical query of recording and historical pouring data.The monitoring system adopts the low-voltage casting independently developed by our company manufacturing monitoring and management software, data management adopts advanced database technology, centralized information management of all equipment.
The display interface adopts the full Chinese standard Windows window interface, simple and easy to learn.The system has a multi-level password, effectively protect the data security.The control system has a high degree of automation, and the monitoring mode of the upper and lower bits is guaranteed
even when the upper monitor fails, the lower control system can still be used automatically according to the preset process parameters run, thus further improving the system stability.
2.The main parameters of technology :
Serial no. | Parameters | values | Unit |
1 | Thermal insulation furnace capacity (aluminum) | 200 | Kg |
2 | Size of static template | 1800X1310X90 | mm |
3 | Size of move template | 600X600X80 | mm |
4 | Distance between columns | 900X900 | mm |
5 | Stroke of move template | 800 | mm |
6 | minimum template | 300 | mm |
7 | maximum template | 1100 | mm |
8 | Open force | 78 | KN |
9 | die locking force | 53 | KN |
10 | Ejection force | 78 | KN |
11 | Static die loose < |
