Quick Details

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  Each One Is Different.

• Packing:

  Wooden Cases And Protection Layer

• Delivery Port:

  XINGANG,SHANGHAI,DALIAN

• Max. Production Capacity:

  3000 Ton/Tons Per Month

• Export Ratio:

  91% - 100%

• OE Experience:

  No

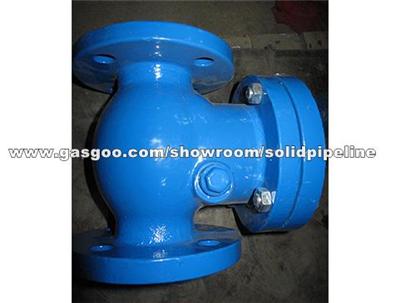

Product Name:Swing Type Check Valve

Swing Type Check Valve

Application

Swing Type Check Valve Check Valve Cast Iron Valve Standard: BS5153,DIN3202-F6,DIN3201-F1, AWWA C508 Flange drilling is according to BS4504, DIN2501, and ANSI B16.1 Working pressure: 10bar/16bar/25bar Testing pressure: Shell: 15bar/24bar/37.5bar Seal: 11bar/17.6bar/27.5bar Material: Ductile iron GGG40/50 or Cast IronGG25 Disc seat ring: Brass/Bronze/Stainless steel/ EPDM Body seat ring: Brass/Bronze/Stainless steel Bolt and Nuts: Carbon Steel with zinc plated or SS304,316 Coating: Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting

Product Description:

  Swing Type Check Valve
Check Valve
Cast Iron Valve
Standard: BS5153,DIN3202-F6,DIN3201-F1, AWWA C508
Flange drilling is according to BS4504, DIN2501, and ANSI B16.1
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Material: Ductile iron GGG40/50 or Cast IronGG25
Disc seat ring: Brass/Bronze/Stainless steel/ EPDM
Body seat ring: Brass/Bronze/Stainless steel
Bolt and Nuts: Carbon Steel with zinc plated or SS304,316
Coating: Internal and external with fusion bonded epoxy coating min250μm or Liquid Epoxy painting
