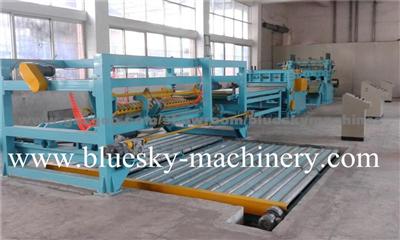

Image for Cut To Length Line BSCL-1300X3

Cut To Length Line BSCL-1300X3

Application: Changan
Market Type:After Market
FOB Price: Inquiry For It?
Payment Terms: L/C
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

OE Experience:
No

Product Name:Cut To Length Line BSCL-1300X3

Cut To Length Line BSCL-1300X3

Application

Changan

Product Description:

Cut to length line BSCL-1300X3

Function:
Cut to length line is used for decoiling, cutting metal coils, popular with lowest price and easy operation.

Machine components:
1. coil car
2. hydraulic uncoiler
3. 4 hi. 17-roller leveler
4. loop pit
5. side guide, 4-roller to length device
6. hydraulic shearer
7. conveyor
8. stacking device
9. unloading roller worktable
10. hydraulic system
11. electric control system

Working process:
Coil loadinguncoilinglevelingside guideshearingstacking--unloading

Technical parameter:

Model	Material thickness range (mm)	Coil width (mm)	Coil weight (ton)	Cutting length (mm)	Speed (m/min)	Capacity (kw)	Occupied area (m)
BSCL-650	0.2-2.0	150-600	5	200-2000	0-50	~40	~18x4
BSCL-850	0.2-2.0	200-800	8	200-2000	0-50	~60	~20x4
BSCL-1400	0.3-2.0/2.0-8.0	300-1250	12	200-3000	0-60	~85/150	~25x4
BSCL-1600	0.5-3.0/3.0-8.0	300-1500	25	200-4000	0-60	~150/180	~30x4
BSCL-2100	6-20	600-2000	35	200-8000	0-30	~210	~35x6
