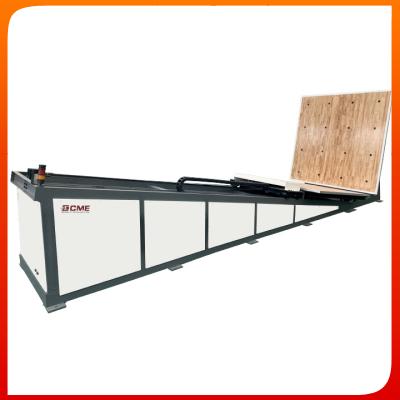

KRD100 Incline Impact Tester

Application: CME
OEM No/Model: KRD100
Market Type:After Market
EXW Price: Inquiry For It?
Payment Terms: T/T
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Type:
other
Place of Origin:
China
OE Experience:
No

Product Name:KRD100 Incline Impact Tester

KRD100 Incline Impact Tester

Application

CME

Product Description:

OEM No/Model: KRD100
KRD100 series incline impact tester simulates the ability of product packaging to resist shock damage in the actual environment, such as handling, stacking of shelves, sliding of motors, loading and unloading of locomotives, product transportation, etc. This machine can also be used as a common test equipment for scientific research institutions, colleges and universities, packaging technology test centers, packaging materials manufacturing plants, and foreign trade, transportation and other departments to conduct incline impact test.

1.         Flexible low-damping tackle, high repetition accuracy, to achieve the required speed change value.
2.         High-strength and low-friction profile guide rails are beneficial to the accurate free sliding of the block.
3.         For heavy-duty test products, the horizontal rotation mechanism of the composite pulley table can be added to facilitate the user to install the test pieces.
4.         Hard wooden or iron sliding table, effectively protect the surface of the test piece.
5.         Complete control and measurement system, simple and convenient operation, integrated control and measurement.
6.         Unique lifting and release methods, with obvious advancement and reliability.
7.         During installation, the customer only needs to fix the machine on the ground, without other complicated operations or installation.

Technical Specifications

Model Parameters	KRD100-100	KRD100-200	KRD100-300	KRD100-500	KRD100-1000	KRD100-2000
Load (kg)	100	200	300	500	1000	2000
Working Table Size (mm)	1100×1100		1300×1300		1800×1800	2000×2000
Shock Panel Size (mm)	1600×2000	1600×2000	2100×2000		2000×2200	2400×2400
Max. Sliding Distance (mm)	4000 (to agreed)
Shock Velocity Range (m/s)	1.2-3.87	1.2-3.87	1.2-3.87		0.59-2.35	0.59-2.35
Shock Velocity Error	±5%
Overall Dimension (mm)	8500×1800×2500	8500×1800×2500	9000×2000×2650		9000×2000×2650	9500×2500×2800
Power Supply	AC380V50/60Hz
Working Environment	Temperature 040Humidity 80% (no condense)
Standard	ISO 2248 ISTA
