Image for CQBF Perfluorinated Plastic Magnetic Pump

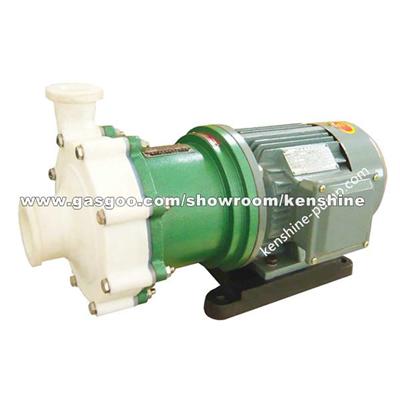

CQBF Perfluorinated Plastic Magnetic Pump

Application: kenshine-pump
OEM No/Model: CQB50-32-125F
Market Type:After Market
FOB Price: USD 600
Other Price Term: FOB,CIF,CNF
Payment Terms: T/T
Samples: Charge
Minimum Order: 1Set/Sets

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Output Power:
1.5kw
Length:
52cm
Width:
30cm
Height:
32cm
Output voltage:
380V
Place of Origin:
Made In China
Samples:
Charge
Sample Price:
600
Delivery Time:
7 DAYS
Packing:
Carton
Delivery Port:
Shanghai
Max. Production Capacity:
1000SETS PER MONTH
Export Ratio:
71% - 80%
OE Experience:
No

Product Name:CQBF Perfluorinated Plastic Magnetic Pump

CQBF Perfluorinated Plastic Magnetic Pump

Application

kenshine-pump

Product Description:

OEM No/Model: CQB50-32-125F

Perfluorinated plastic magnetic pump

CQB-F perfluorinated plastic magnetic pump has the pump inlet and outlet less than DN65mm. It adopts magnetic coupling driving and there is no dynamic sealing. Therefore, it solves the phenomenon of running, blowing, dropping and leakage at shaft seal of general shaft driven centrifugal pump.

The flow components of CQB-F fluoroplastic magnetic pump are made of fluoroplastics and high purity industrial ceramics, with corrosion resistance and sealing. CQB-F fluoroplastic magnetic pump has no mechanical shaft seal and no leakage. For pump inlet and outlet more than 50mm,such as DN65,DN80,DN100 etc, the flow components are made of fluoroplastic, ceramics, fluororubber and other materials. The pump body is fixed with metal materials, so the pump body is sufficient to support the weight of the pipeline and easy to use and maintain.

Features:

The magnetic pump has the advantages of corrosion resistance, no leakage, compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient operation.

Application

CQB-F series fluoroplastic magnetic pump is used in petroleum, chemical industry, metallurgy, pharmacy, electroplating, environmental protection, and other industries. It can transport strong acid, strong alkali, strong oxidation, inflammable, explosive, highly toxic and precious liquids.

MODEL	Q(m3/h)	H(m)	Efficiency(%)	NPSH(m)	inlet*outlet (mm)	motor power(KW)	Weight(kg)	Speed(rpm)
CQB16-12-50F	0.6	2	8	9	16*12	0.025	5	2900
CQB15-15-65F	0.8	3.2	16	6	15*15	0.18	7	2900
CQB20-15-75F	1.6	7	22	6	20*15	0.18	8	2900
QB25-20-100F	1	10.5	25	6	25*20	0.37	12	2900
CQB32-20-110F	4	13.5	30	6	32*20	0.55	18	2900
CQB40-25-120F	6.3	15	42	5	40*25	0.75	35	2900
CQB40-40-100F	6	11	43	5	40*40	0.55	20	2900
CQB40-40-125F	6.5	17.5	42	3.7	40*40	1.1	40	2900
CQB40-25-160F	5	33	45	3.5	40*25	3	72	2900
CQB50-32-125F	7	22	28	3.5	50*32	1.5	45	2900
CQB50-32-160F	7	28	28	3.5	50*32	4	80	2900
