OEM No/Model: L-200

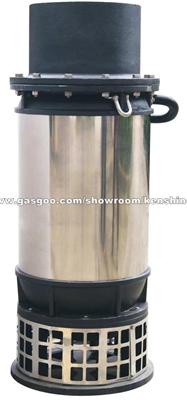

L Large discharge capacity seawater pump
Pump structure is solid, dry motor, double-group mechanical seal, excellent waterproof, impeller diversion device, smooth water flow, pump can be used for long-term operation with waterproof grade IP68.
Light weight, easy to operate and easy to maintain
Centrifugal type, axial flow, oblique flow impeller design, low head at large water volume, low energy consumption is in line with economic benefits
ALBC3 aluminum bronze material, both seawater corrosion resistance and abrasion resistance, less sand wear.
Application:
Aquaculture fisheries, agricultural irrigation, low-lying areas flooded out
Landscape waterfall water
Hydraulic engineering equipment
Other USES of large water supply and drainage
Liquid temperature: 0 to 40
Liquids: agricultural irrigation, aquaculture water, river water
Depth: 30 m
The impeller;3.7KW, centrifugal, 5.5kW, 7.5KW axial, 11KW oblique
Seal: Double group mechanical seal
Bearings: deep groove ball bearings
Pump Housing: SS304
Inner upper cover: BC6 tin bronze
Cover: HT200
Impeller: ALBC3 aluminum bronze
Motor type: dry water type, 4P, F, 50HZ, motor housing: SS304, cable: H07RN-F
MODEL | Power(KW) | Caliber(mm) | Phase | Head(m) | Q(m3/h) | Weight(kg) | Solid Dia.(mm) | Size(mm) |
L-150 | 3.7 | 150 | 3 | 8 | 120 | 87 | 20 | 285*285*790 |
L-200 | 5.5 | 200 | 3 | 4 | 210 | 120 | 22 | 340*340*923 |
L-250 | 7.5 | 250 | 3 | 4 | 330 | 160 | 23 | 380*380*1015 |
L-300 | 11 | 300 | 3 | 4.5 | 420 | 212 | 23 | 430*430*1072 |
