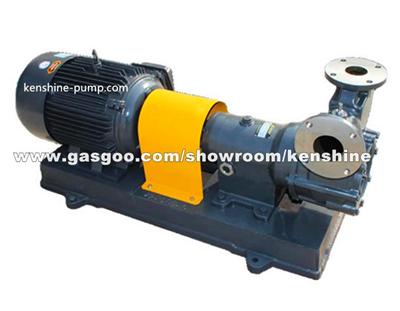

QYB Gas Liquids Mixing Pump

    • Application: kenshine-pump
    • OEM No/Model: 50QYB-40
    • Market Type:After Market
    • FOB Price: USD 1050
    • Other Price Term: FOB,CIF,CNF
    • Payment Terms: T/T
    • Samples: Charge
    • Minimum Order: 1Set/Sets

Quick Details

  • Output Power:

    5.5kw

  • Length:

    123cm

  • Width:

    32cm

  • Height:

    35cm

  • Output voltage:

    380V

  • Place of Origin:

    Made In China

  • Samples:

    Charge

  • Sample Price:

    1050

  • Delivery Time:

    15 DAYS

  • Packing:

    PLYWOOD CASE

  • Delivery Port:

    Shanghai

  • Max. Production Capacity:

    500Sets Per Month

  • Export Ratio:

    71% - 80%

  • OE Experience:

    No

Product Name:QYB Gas Liquids Mixing Pump

QYB Gas Liquids Mixing Pump

Application

kenshine-pump

Product Description:

OEM No/Model: 50QYB-40

QYB type gas-liquid mixing pump is a series of products of self-priming gas-liquid mixing pump with horizontal installation. QYB adopts the form of standard click coupling connection. The flow parts of the pump are all made of stainless steel.

The suction port of the gas-liquid mixing pump can take advantage of the negative pressure action to inhale gas, so there is no need to use a gas compressor and an atmospheric injector. The high-speed rotating pump impeller stirs the liquid and gas, so no agitator or mixer is needed. As a result of pressure mixing in the pump, gas and liquid fully dissolved, the dissolution efficiency can reach 80~100%.So you don't need a large pressurized gas tank or an expensive reaction tower to make a highly soluble solution. A gas-liquid mixing pump can attract, mix, dissolve and directly send the liquid to the point of use. Therefore, the use of gas-liquid mixing pump can improve the production efficiency of dissolved gas-liquid, simplify the production equipment, save the site, greatly reduce the initial investment, and save the operating cost and maintenance costs.

Application ranges

Gas-liquid mixing pump is suitable for liquid transportation, enterprise mixing and stirring, circulation and pressurization. Typical applications:

Air floatation treatment equipment, ozone water production equipment, oxygen-rich water production equipment, biochemical treatment equipment, etc.

Circulating transfer of thermal and refrigerant of various temperature regulating devices,

Various filtering devices,

Low viscosity liquids such as gasoline, diluent and various solvents are extracted from underground storage tanks or transported under high pressure

Spray treatment of clean water, pure water, food, chemical liquid, and waste liquid

Intermittent operation, water hammer, sharp changes in back pressure and other harsh application.Such as: small steam furnace, high-rise water supply, high pressure tank to high pressure water injection, attracted by the vacuum tank;

Take sample water from river or storage tank, transfer foaming liquid, easy to appear in the long horizontal pipeline.

Operating conditions

Thin, clean, low viscosity liquid; PH range is 3 to 9.

Liquid temperature: -15~120

Maximum ambient temperature: +40

The gas-liquid volume ratio is about 1:9 (inspiratory volume is 8~10%).

The imbibition height is 9-NPSH (m).

Pump Type Capacity Head Speed Motor power
m3/h m n (KW)
50QYB-15 8 10 1450 4
5.5 40
3 60
50QYB-40 16 10 1450 5.5
12 40
8 60
65QYB-130 11.6 64 2900 15
9.4 132
6.1 173
65QYB-40 27.5 10 1450 11
25 40
21 60
80QYB-40 48 10 1450 18.5
45 40
38 60
