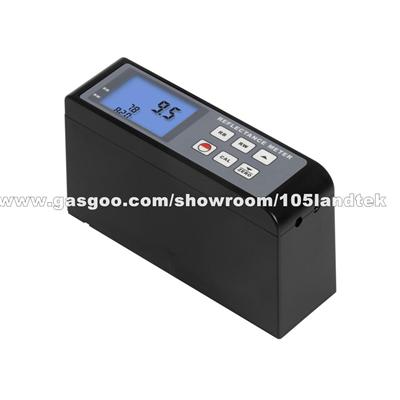

Reflectance Meter(Cryptometer) RM-206

    • Application: Acura
    • Market Type:After Market
    • Price: USD Negotiable
    • Payment Terms: T/T
    • Samples: Not Available
    • Minimum Order: 1Piece/Pieces

Quick Details

  • Type:

    other

  • Place of Origin:

    CHINA

  • Samples:

    Not Available

  • Delivery Time:

    3-5 Days

  • Packing:

    In Carton

  • Delivery Port:

    GUANGZHOU

  • Max. Production Capacity:

    2000pcs/Month

  • OE Experience:

    No

Product Name:Reflectance Meter(Cryptometer) RM-206

Reflectance Meter(Cryptometer) RM-206

Application

Acura

Product Description:

Reflectance Meter(Cryptometer)  RM-206
Applications:

It can not only measure the transparency extent and covering power of  coating, grease, film, plastic products, organic products; but also the reflectivity of solid surface (such as stereo  movie screen). cryptometer

Features:
* It is widely used in coatings, pigments, inks, plastics, printing and dyeing, leather, film screenings and other industries, for product quality or standardized inspection and management.

* It meets the international standards of ISO3906-1980 (E), ISO3905, ISO2814, and the national standards of GB/T13452.3-92, GB9270-88, GB5211.17-88.

* Use RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
* This instrument is composed of main unit, standard board (a black one and a white one), testing board (a black one and a white one).

* When the reflected light of the sample acts on the surface of the photocell, an electric signal is input into the DC amplifier and amplified for reading on the display.

Details:


Range
0~100
Resolution 0.1
Accuracy ±1
Repeatability 0.3
Measuring Area 7x14mm (Ellipse)
The display data is in direct proportion to the reflected light.
The spectral sensitivity of the instrument is approximately equal to the product of Sc() and y().
Operation Temp. 0~40°C
Operation Humidity <85%RH
Power Supply 3.7 V Lithium Ion Rechargeable Battery
Size 141x45x79mm
Weight 310g (Including Batteries)
Standard Accessories Main Unit
Standard Board (Black)
Standard Board (White)
Testing Board (Black)
Testing Board (White)
Power Adapter
Optic Cleaning Cloth
Carrying Case
Operation Manual
Optional Accessories USB Data Cable with Software
Bluetooth Data Adapter with Software

For more details,please feel free to contact us.Thank you!
