Quick Details

• Output Power:

  55kw

• Length:

  2320mm

• Width:

  1500mm

• Height:

  5340mm

• Place of Origin:

  China

• Samples:

  Not Available

• Delivery Time:

  3-4months

• Packing:

  Plywood Suitable For Sea Transportation

• Delivery Port:

  Shanghai

• Max. Production Capacity:

  50sets/Year

• Export Ratio:

  31% - 40%

• OE Experience:

  No

Product Name:1.5 Tons Drop Forging Hammer For Rigging Fittings Forge

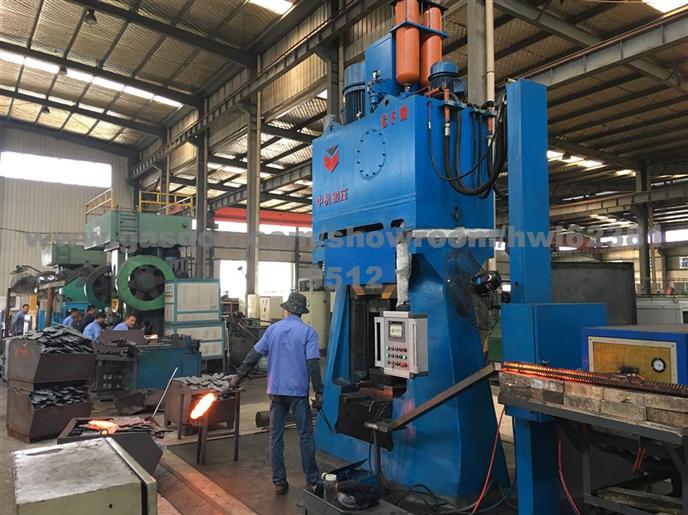

1.5 Tons Drop Forging Hammer For Rigging Fittings Forge

Application

forging plant

Product Description:

Main features:
01) Program control, numerical input, simple operate;
02) High integrated hydraulic control system, accumulator fixed directly on main valve block without any pipe connecting, improve hydraulic system efficiency and easy for maintenance;
03) Advanced taper valve control, fast response, good sealing and not easy to inner leakage;
04) One-piece casting steel U-frame, radial wide guide rails, to get stable and high ram guiding accuracy;
05) Touch screen man-machine interface and automatic malfunction diagnosis and alarm, easy for machine operation and maintenance;
06) Digitized and exacted controlling striking energy, avoid surplus energy harm during striking;
07) Three inserted locating faces to avoid bolts receive force and imported locking washer is used to avoid bolts lose.
08) Fully hydraulic driving system, avoid oil and air mixing;
09) Swaying combine oil cylinder and thin piston rod flexible design;
10) High and low pressure double anti-leakage design;
11) Slow up and down in the case of releasing hydraulic system pressure to make die changing safety;
12) Ram buffer is inner hydraulic buffer, to make sure safety and effective;

Optional machines:
01) Special designed die automatic lubrication, blank convey system, ejector and scale removing system are for customer to choose. They can be linked to hammer through program to realize die lubrication locating, timing, quantifying control, to improve its productivity and reduce labor intensity.
02) Remote monitor system can save maintenance engineer to users workshop time and cost. It not only save large labor and resource cost, but also supply fast service to customer to reduce loss arising from hammer stopping.


Main technical parameter:

item	unit	C88K- 16	C88K- 25	C88K- 31.5	C88K- 50	C88K- 63	C88K- 80	C88K- 100	C88K- 125	C88K- 160
Striking energy	KJ	16	25	31.5	50	63	80	100	125	160
Max. Striking frequency	Min-1	100	90	90	90	80	80	75	70	65
Ram weight	Kg	1150	1800	2250	3500	4350	5600	7000	8600	9800
Dropping weight	Kg	1350	2100	2700	4000	5000	6300	8000	9800	11000
Total weight	T	26	42	52	82	104	123	156	195	240
Main motor power	Kw	30	55	55	2X55	2X55	2X90	2X90	2X110	2X132
