  Electric Vehicle Insulation Monitor Monitoring System

• Working power supply:

  9--32V DC

• Busbar voltage monitoring range:

  0V-1000V DC

• error range: ±1V:

  accuracy: 0.1V

• Insulation resistance:

  0-50MΩ ±10%

• Overall unit power consumption:

  ≤5W

• Measurement response time:

  ≤5S

• In accordance:

  IP67

• Delivery Time:

  WITHIN2-6days after received your payment

• Packing:

  standard packing

• Delivery Port:

  HK

• OE Experience:

  No

Product Name:Hot-selling newest 12v electric car battery BSM monitor with high quality and lower price

Hot-selling newest 12v electric car battery BSM monitor with high quality and lower price

Application

all

Product Description:

Hot-selling newest 12v electric car battery BSM monitor with high quality and lower price

 Specifications:

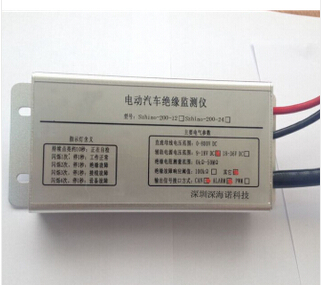

    Based on the foreign advanced technology, we develop a new product - Insulation Monitoring Device. Insulation monitor can be always online monitoring of the insulating state of the power grid, it is conducive to detect hidden faults quickly and accurately, when it find the insulation faults, the light will be flash 2 times. Flash 3 times, it means Connection failure. Flash 4 times, it means equipment failure.

   Our product will be let your car more safe. In technical, we used micro processor technique, intelligent design, low-frequency signal injection. It has a self-diagnosis and auto-calibration features. In appearance: Its small size, easy to install.
   It has three interfaces: PWM, CAN and ALARM. Usually Battery car only have ALARM interfaces.

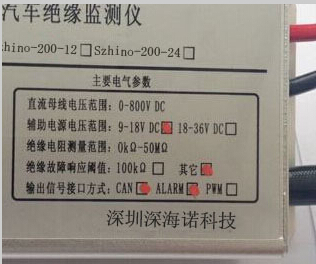

Szhino-200-12 for 12Vlow voltage supply vehicle
Szhino-200-24 for 24V low voltage supply vehicle
Szhino-200-72 for 72V low voltage battery car

Operation temperature: -40 C~85 C
Operating humidity: UNDER 95%
Storage temperature: -40c~85c
Input DC bus voltage range: 0-800V DC

Insulation monitor can be always online monitoring of the insulating state of the power grid, it is conducive to detect hidden faults quickly and accurately.
Apply to Electric car, bus

Our factory a corner :

nowadays ,electric car and bus are more and more popular in our daily life,have bring many convenience to our our traffic ,but one the other hand ,car accident occur more frequently .we recommend you Insulation Monitoring Device,it is conducive to detect hidden faults in your car quickly and accurately to avoid unnecessary losses and injuries.

With the development of modern industry, electric vehicles (including hybrid cars) have been developed rapidly and become more and more mature day by day. To meet certain power requirements, an electric car needs multiple batteries to be connected in series to support its use; the total voltage of the battery group is generally higher than 100V, and even as high as 800V. Moreover, as the operation environment of an electric car is worse, vibration, impact, cold and hot weather alternation, corrosion of different kinds of corrosive gas and liquid and traffic accidents on road might damage the insulation between the internal electric system part and body of the electric car, and thus directly influences the safety of the driver and electric car itself. Therefore, it is very significant to correctly monitor the insulation performance of electrical system to the vehicle chassis in real time and ensure the driver’s safety, normal work of electrical equipment and safe operation of vehicles.

SZHINO-300 series DC insulation monitoring module is the insulation monitor developed by SHENZHEN SZHINO TECHNOLOGY CO., LTD., which is specially used for electric vehicles, trucks and buses; various complicated conditions are taken into consideration for the measurement and calculation of resistance to ground; accurate and reliable control and unique algorithm is used to ensure rapid and accurate measurement of resistance to ground of the busbar. Low-frequency signal source injection method is applied to SZHINO-300 series electric vehicle insulation resistance monitor. The test resistance network is formed by the signal injection source and voltage sampling resistance as well as insulation resistance; sample the voltage on the resistance in the high precision AD sampling resistance network; then, insulation resistance to be measured can be got by calculation in the loop voltage equation and endpoint current equation, and through DSP treatment. The low-frequency signal source is a standard constant voltage signal source, so the test accuracy is not influenced by the changes of DC high voltage. The feature of using the mode is that measurement accuracy is high, the anti-interference capacity is strong and failed and false insulation alarm can be eliminated effectively.

Comparing SZHINO-300 electric vehicle insulation monitor with domestic and foreign products, its shell is made of flame-retardant engineering plastic or heat radiating aluminum profile, which is accordance with UL94-V0; it has obvious advantages including small size, light weight, less power consumption of external resistance module, cost saving and long quality guarantee period, etc.

Technical Parameters of SZHINO-300 Series Product
1. Real-time online monitoring
2. Working power supply: 9--32V DC
3. Busbar voltage monitoring range: 0V-1000V DC, error range: ±1V, accuracy: 0.1V
4. Monitored busbar voltage can be sent out by the CAN bus, and there is an alarm output indicating light.
5. Insulation resistance: 0-50MΩ   ±10%
6. Temperature range: -40鈩?125鈩?br/>7. Overall unit power consumption: ≤5W
8. Measurement response time: ≤5S
9. Required to be in accordance with the national standard for electric vehicles
10. In accordance with IP67
