Product Name:GDLB-601 Instantaneous Signal Recorder

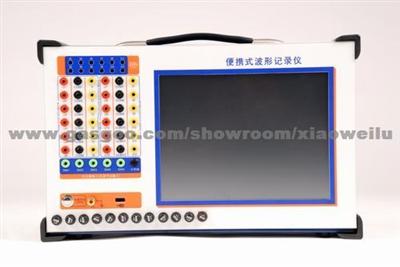

GDLB-601 Instantaneous Signal Recorder

Application

gold

Product Description:

Product Name: GDLB-601 Instantaneous Signal Recorder
.1General introduction
GDLB-601 is an instantaneous signal recorder used for kinds of industry. It takes IPC as the core to sample and data process. It has 12.1 LCD to show, touch pad for operation, strong anti-jamming and easy operation.

1.2Functions
1. Sample isolation between channels completely.
2. The instrument software has waveform zoom, data statistics, spectrum transformer and wavelet transformer tools.
3. Lots of test template to make customers finish test rapidly.
4. All the data can be exported through U-disk or wireless network.
5. Automatic upgrade interface of the tester make it easy to get latest software package and test template.
6. 12.1 LCD to show, touch pad for operation.
7. Automatically makes WORD and EXCEL test reports.

1.3Technique parameters
1. Analog signal sample channels:12
2. Optional stalls: -450V~450V-100V~100V~10V~10V-20mA~20mA
3.Sample error:
-450V~450V   error<0.5V
-100V~100V   error <0.2V
-10V~10V     error <0.01V
-20mA~20mA  error <0.02mA
4. Passive switch signal input interface:5
5. Work condition:
Power supply: AC220V10
Frequency: 50Hz
Power consumption: ≤60w
Temperature: 040C
Humidity: ≤90RH
Size: 448260150 mm
Weight :<10kg
