Quick Details

• Output Power:

  15kw

• Length:

  1.6m

• Width:

  1.2m

• Height:

  1.8m

• Output voltage:

  380V

• Place of Origin:

  Shenyang,China

• Samples:

  Not Available

• Delivery Time:

  30 Working Days

• Delivery Port:

  Dalian

• Max. Production Capacity:

  50 Sets Per Year

• Export Ratio:

  61% - 70%

• OE Experience:

  No

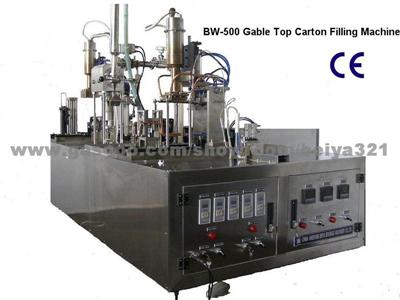

Product Name:Small Type Manual Beverage Gable-Top Carton Filling Machinery (BW-500)

Small Type Manual Beverage Gable-Top Carton Filling Machinery (BW-500)

Application

BW-500

Product Description:

BW-500 type Small Type Manual Beverage Gable-Top Carton Filling Machinery is semi-automatic, including the following parts: Carton forming part, capping part, top performing part, filling part, top sealing part, and date printing part. The entire machine is made of food-grade stainless steel, and the surface is special processed to be beautiful and durable in use.

1. Work flow:
1) Carton Forming part: Put the cardboard onto the mandrel (manually) -- Bottom performing -- Bottom heating -- Bottom sealing
2) Capping part: Put the cap into and the carton's capping hole (manually) -- Ultrasonic welding -- Top Open Carton with Cap
3) Top performing part: Top preforming
4) Filling part: Put the carton to the filling part (manually) -- Rationing filling -- Filled Top Open Carton with Cap
5) Top sealing part: Top heating -- Top sealing
6) Date printing part: Date printing -- Finished Product

2. Suitable for filling:

Milk, yogurt, cream, beaten egg, soy milk, juice, tea drink, corn drink, pure water, sauce, wine, spices, cleaning solution, chemical product, sugar, grain, cornmeal, other dry powder, etc.

3. Technical parameter:

1. Capacity: 250--1000ml (can be filled by one machine)
2. Output: 400-500 cartons/hour
3. Packing material: Cardboard carton / aluminium foil carton
4. Filling temperature: Cold filling: 2-50 degC / hot filling 88-92 degC
5. Cap: With cap (Optional)
6. Overall power: 15KW (three phases of electricity)
7. Size: (L*W*H): 1.6m*1.2m*1.8m
8. Compressed air pressure: 0.8-1.0 Mpa, Flow rate: 0.4M3/min, without oil, water and dust
9. Cooling water: Flow volume: 20L/ min Temperature: Normal temperature
10. Net Weight: 500kg
11. Installation requirement: Any smooth floor, such as cement, floor tile, plastic ground, etc. Do not need to make angle.

4. Payment terms
 1)T/T : 30% as deposit , 70% balance before shipment
 2) L/C at sight

5. Delivery time
  1) For automatic filling machine 60 days
  2) For semi-automatic filling machine 45 days
  3) For manual filling machine 30 days

6. After Sale Services
Shenyang Beiya Beverage Machinery Co.,Ltd will supply 12 months guarantee for all the equipments, and if customer need, we will send our technicians to customers factory, install the machines and train customer's staff to operate the machine. we will supply all the spare parts with cost price if customer need.
