Product Name:Numerical Control High-speed Cut-to-Length Line for Metal Sheets

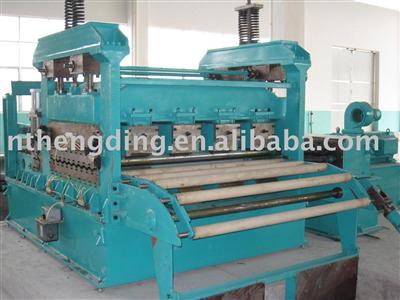

Numerical Control High-speed Cut-to-Length Line for Metal Sheets

Application

universal

Product Description:

Numerical control high-speed cut-to-length line is especially designed for thin metal boards.High rigidity and hardness.

   This Numerical Control High-speed Cut-to-Length Line for Metal Sheets is equipment specializes in leveling and cutting metal sheets into blocks. It usually consists of board-sending car, unrolling machine, board-supporting-and-conveying equipment, leveling machine, board-conveying bridge, direction-correcting facility, length-measuring-and-fixing equipment, film-adding facility, shearing machine, blocks-of-boards-conveying table, pneumatic board-vertically-lining frame, hydraulic lifting stacking table, blocks-of-boards-conveying facility, hydraulic system, electric systemtogether with PLC control system. The main units for hydraulic, pneumatic, electric systems and length-measuring-and-fixing system are products of world-famous manufacturers. This cut-to-length line is mainly used in processing cold-rolled carbon steel, coiled stainless board and coiled non-ferrous metal boards, etc. Equipped with six-fold leveling machine, this cut-to-length line can well-level coiled metal boards whose surfaces need advanced technology to process (such as aluminum board) , and then cut the leveled boards into blocks in required length. Depended on the requirements from our customers, the process of leveling can be achieved by a primary leveling machine or an advanced one. Then shearing the leveled boards in required length can b e achieved by ordinary mechanical electrical appliance together with digital frequency conversion technology or alternating servo technology. The shearing machine could be an ordinary mechanical shearing machine or a hydraulic shearing machine, or a high-speed gated shearing machine whose power is transmitted by electromagnetic clutches or pneumatic clutches, or a flying-saw shearing machine, or a turning-style flying shearing machine. Equipped with other machines, the function of this cut-to-length line can be enhanced.

ProjectUnitThe range to choose fromThickness of boards to be processedmm0.3-2,0.5-3,0.5-5(aluminum plates)Width range of boards to be processedmm1,000,125,015,002,000 The loading of unrolling machineT5, 12, 15 Leveling precisionmm/m²1.2 Length-measuring precisionmm±0.50Highest cut-to-length line working speedm/min25, 40, 60, 100The total power of the cut-to-length lineKW65, 95,100
