Quick Details

• OE Experience:

  No

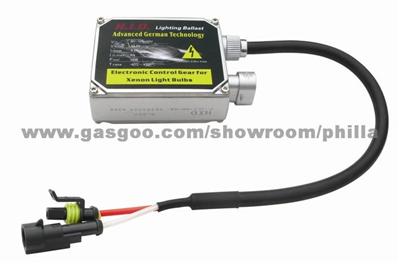

Product Name:9-32V/35W AC Normal Ballast With Canbus

9-32V/35W AC Normal Ballast With Canbus

Application

auto

Product Description:

Model: LS2455M-35W
Input voltage: DC9 -32V
Output power: 35W ± 2W
Output voltageAC50-130V
Cold starting current: <7.5A
Hot starting current: <5A
Operation frequency330Hz
Expected life-span: >3000hrs
Operation temperature: -40 ~ +105

Description:

1.Fit for all 12v vehicle,include truck.
2. start-up quick and bulb lighting within 6s.
3.work efficiency >85%,temperature low when working.
4.  star voltage 23000V±3000Vlight up successfully everytime.
5. working frequency close to Hella, stable output for bulbs.
6.Open-circuit protection / short circuit protection / reverse polarity protection / high and low voltage protection / high and low pressure recovery.
7.With Can-bus, resolve with 90% car disturb problem.
8 .heat-resisting function.
9. E-mark & CE Approved.
