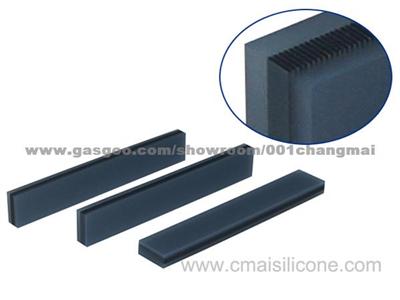

Elastomeric Zebra Connector

Application: cadillac, Chrysler, DAEWO...
Market Type:After Market
FOB Price: USD 0.35
Payment Terms: L/C, T/T
Samples: Free
Minimum Order: 6000Piece/Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Color:
Black
Place of Origin:
China
Samples:
Free
Delivery Time:
8days
Max. Production Capacity:
100K
Export Ratio:
41% - 50%
OE Experience:
No

Product Name:Elastomeric Zebra Connector

Elastomeric Zebra Connector

Application

cadillac, Chrysler, DAEWOO, Daihatsu, Dodge, fiat

Product Description:

I Specifications
YS Type Inter-connector consists of alternate layers of conductive and insulating silicone rubber. The insulators are fitted on both sides which is soft. This type is suitable for small or middle-sized displays. YS type has translucent supportive solid rubber on the both sides.

II Applications:
General LCD products such as Calculator, Electronic Toy, Telecommunication, Audio and Visual products, etc.

III Dimension and Tolerance:

Item

Code

Unit

0.05P

0.10P

0.18P

0.25P

Pitch

0.05±0.02

0.10±0.03

0.18±0.04

0.25±0.07

Length

1.0~24.0±0.10 24.1~50.0±0.15
50.1~100.0±0.20 100.1~200.0±0.30

Height

0.8~7.0±0.10 7.1~10.0±0.15 10.1~30.0±0.20

Width

0.5~3.0±0.10 3.1~6.0±0.20 6.1~10.0±0.50

Conduct width

0.025±0.01

0.05±0.02

0.09±0.03

0.13±0.04

Insulator width

0.025±0.01

0.05±0.02

0.09±0.03

0.12±0.04

Core width

0.2~1.0±0.05 1.1~4.0±0.10

Lines lope

2°

Remark

In order to make the connectors work well, the compression limit for the height direction of the connectors must be between 9.0%~15%, and the best compression value is 10%, and the suitable touch pressure is bigger than 20g / mm × length. I Specifications
YS Type Inter-connector consists of alternate layers of conductive and insulating silicone rubber. The insulators are fitted on both sides which is soft. This type is suitable for small or middle-sized displays. YS type has translucent supportive solid rubber on the both sides.

II Applications:
General LCD products such as Calculator, Electronic Toy, Telecommunication, Audio and Visual products, etc.

III Dimension and Tolerance:

Item	Code	Unit	0.05P	0.10P	0.18P	0.25P
Pitch	P	mm	0.05±0.02	0.10±0.03	0.18±0.04	0.25±0.07
Length	L	mm	1.0~24.0±0.10 24.1~50.0±0.15 50.1~100.0±0.20 100.1~200.0±0.30
Height	H	mm	0.8~7.0±0.10 7.1~10.0±0.15 10.1~30.0±0.20
Width	W	mm	0.5~3.0±0.10 3.1~6.0±0.20 6.1~10.0±0.50
Conduct width	TC	mm	0.025±0.01	0.05±0.02	0.09±0.03	0.13±0.04
Insulator width	TI	mm	0.025±0.01	0.05±0.02	0.09±0.03	0.12±0.04
Core width	CW	mm	0.2~1.0±0.05 1.1~4.0±0.10
Lines lope	2°
Remark	In order to make the connectors work well, the compression limit for the height direction of the connectors must be between 9.0%~15%, and the best compression value is 10%, and the suitable touch pressure is bigger than 20g / mm × length.
