Dadi, DADI Auto Elastomeric Zebra Connector
I Specifications

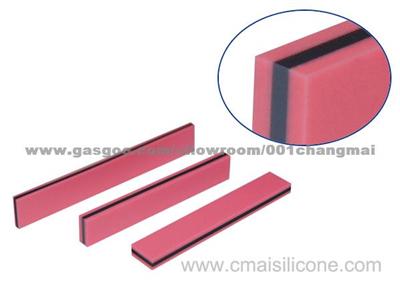

YP Type is one of the basic rubber inter-connectors, and the sponge rubbers that is fitted on both sides of the conductive rubber (YL Type) are with good insulation and vibration reducing performance, and it can avoid the short circuit when use the metal shell. Because of the sponge rubber insulators are more compressible than YS Type products, YP Type inter-connectors are more suitable to use for connecting large sized LCD's to PCB's
II Applications:
YP Type can be the electronic products such as Calculator, Cars Audio, and Toy and so on.
III Dimension and Tolerance:
Item |
Code | Unit | 0.05P | 0.10P | 0.18P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pitch | P | mm | 0.05±0.015 | 0.10±0.03 | 0.18±0.04 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Length | L | mm |
1.0~24.0±0.10 24.1~50.0±0.15 50.1~100.0±0.20 100.1~200.0±0.30 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Height | H | mm | 0.8~7.0±0.10 7.1~15.0±0.15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Width | W | mm | 1.0~2.5±0.15 2.5~4.0±0.20 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Conduct width | TC | mm | 0.025±0.01 | 0.05±0.02 | 0.09±0.03 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Insulator width | TI | mm | 0.025±0.01 | 0.05±0.02 | 0.09±0.03 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Core width | CW | mm | 0.2~1.0±0.05 1.1~4.0±0.10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lines lope | 2° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Remark |
In order to make the connectors work well, the compression limit for the height direction of the connectors must be between 8.0%~15%, and the best compression value is 10%, and the suitable touch pressure is bigger than 20g / mm×length. I Specifications YP Type is one of the basic rubber inter-connectors, and the sponge rubbers that is fitted on both sides of the conductive rubber (YL Type) are with good insulation and vibration reducing performance, and it can avoid the short circuit when use the metal shell. Because of the sponge rubber insulators are more compressible than YS Type products, YP Type inter-connectors are more suitable to use for connecting large sized LCD's to PCB's II Applications: YP Type can be the electronic products such as Calculator, Cars Audio, and Toy and so on. III Dimension and Tolerance:
|
