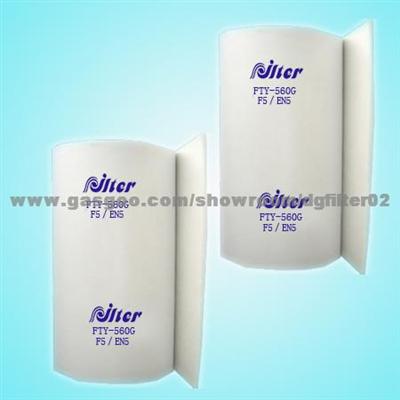

l This product is used for terminal filtration in the surface spray-paint industry, especially in the spray booth
l Its processed by anti-break synthetic fiber with gradual density. Air in-let side with adhesive treatment and backing with net or cloth to reinforce the material, to increase its efficiency and extend its working life
l Adhesive treatment makes the particles unable to pass the material, uniform the air flow, create a perfect spray condition
l Filter particles: 1μm
l Non-flammability standard: DIN53438 F1Temperature resistance: 80
|
Dimension |
Rated air velocity (m/s) | Initial pressure drop(Pa) | Rated air flow (sm/h) | Efficiency | Dust holding capacity (g/sm) | Final pressure(Pa) | EN779 | Weight | ||
| Length(m) | Width(m) | Thickness(mm) | ||||||||
| 14/20/21 | 1.6/2 | 23 | 0.25 | 25 | 950 | 96% | 450 | 450 | F5 | 400g |
