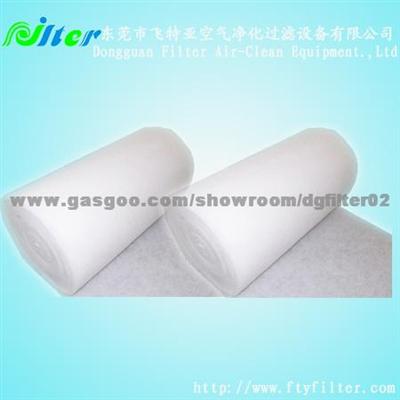

l This product is used for pre-filtration or coarse filtration in the ventilation and air conditioning system
l Its processed by high-performance PET synthetic fiber with gradual density
l Large dust holding capacity, low pressure, be workable many times after cleaning
l Filter particles: 5μm
l Temperature resistance: 80
l Two types: FTY-100W(without adhesive), FTY-100Y(with adhesive)
|
Dimension |
Rated air velocity (m/s) | Initial pressure drop(Pa) | Rated air flow (sm/h) | Efficiency | Dust holding capacity (g/sm) | Final pressure(Pa) | EN779 | Weight | ||
| Length(m) | Width(m) | Thickness(mm) | ||||||||
| 20 | 1/2 | 10 ± 2 | 1.5 | 18 | 5400 | 70% | 360 | 150 | G2 | 120g |
