Quick Details

• Place of Origin:

  Anhui, China (Mainland)

• Delivery Time:

  0

• Packing:

  25pcs/bag20bags/carton

• Delivery Port:

  Shanghai

• OE Experience:

  No

Product Name:Turbo Seal Series SAE Type "T" Constant Tension Clamp

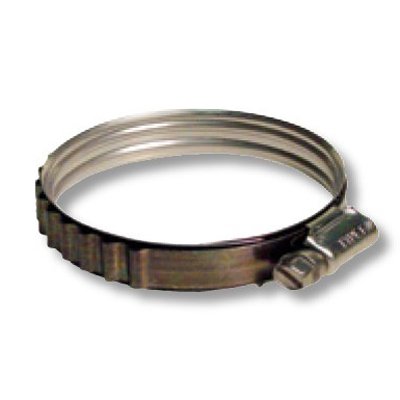

Turbo Seal Series SAE Type "T" Constant Tension Clamp

Application

universal

Product Description:

1, Murray a Worldwide Leading Brand
2, 100 years in constant tension clamp profession
3, Certification:ISO9001,TS16949,ROHS

Turbo Seal Series SAE Type "T" Constant Tension Clamp

1)Rated Ultimate Torque: 75in.lbs. (8.5 Nm)

2)Recommended Installation Torque: 50in.lbs. (5.6 Nm)

3)Turbo-Seal Material Specifications Band Material:

4)Special “400” Series Stainless

5)Housing Material: 300 Series Stainless

6)Shield Material: 300 Series Stainless

7)Screw Material: 300 Series Stainless

Turbo Seal Size Chart

Part Number

“A” Diameter Range

“300” Series

Stainless

Screws

Decimals

Inches

Millimeters

Min.

Max.

Min.

Max.

Min.

Max.

TSS14S30

1.12

1.50

1-1/8

1-1/2

28

38

TSS16S30

1.20

1.63

1-1/5

1-5/8

30

41

TSS18S30

1.28

1.75

1-1/4

1-3/4

33

44

TSS20S30

1.37

1.88

1-3/8

1-7/8

35

48

TSS24S30

1.56

2.13

1-9/16

2-1/8

40

54

TSS28S30

1.63

2.38

1-5/8

2-3/8

41

60

TSS32S30

1.80

2.63

1-13/16

2-5/8

46

67

TSS36S30

1.97

2.88

1-31/32

2-7/8

50

73

TSS40S30

2.25

3.13

2-1/4

3-1/8

57

79

TSS44S30

2.50

3.38

2-1/2

3-3/8

64

86

TSS48S30

2.75

3.63

2-3/4

3-5/8

70

92

TSS52S30

3.00

3.88

3

3-7/8

76

98

TSS56S30

3.25

4.13

3-1/4

4-1/8

83

105

TSS60S30

3.50

4.38

3-1/2

4-3/8

89

111

TSS64S30

3.75

4.63

3-3/4

4-5/8

95

118

TSS68S30

4.00

4.88

4

4-7/8

102

124

TSS72S30

4.25

5.13

4-1/4

5-1/8

108

130

TSS76S30

4.50

5.38

4-1/2

5-3/8

114

137

TSS80S30

4.75

5.63

4-3/4

5-5/8

121

143

TSS84S30

5.00

5.88

5

5-7/8

127

149

TSS88S30

5.25

6.13

5-1/4

6-1/8

133

156

King Seal is Murray Corporation's plant in China. Founded over 90 years ago, Murray Corporation continues to design and manufacture fasteners and clamps for hose and pipe applications in the worldwide agriculture, automobile, truck, off-highway, municipal, marine, irrigation, beverage and plumbing ...[Read More]

Company Profile:

• Main Product:

  American Type hose clamp, mini clamp, single ear hose clamp, German type hose clamp, T-Bolt hose clamp

• Business Type:

  Manufacturer

• Current Export Market:

  North America
