1, Murray a Worldwide Leading Brand
2, 100years in Tension Clamp Profession
3, Certification:ISO9001,TS16949,SAEJ1508

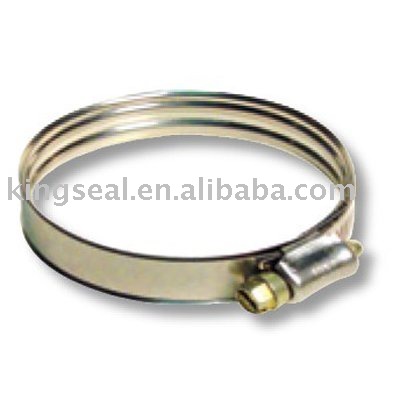

Constant Tension Clamp
1)Rated Ultimate Torque: Carbon Screw 50in.lbs. min. (5.6Nm)/SS Screw 60in.lbs. min. (6.8Nm)
2)Recommended Installation Torque: Carbon Screw 30-40in.lbs. (3.4 - 4.5Nm)/SS Screw 35-45 in.lbs. (4.0 - 5.1Nm)
3)Material Specifications
DBxxx Series — 200/300 Series Stainless Steel Band & Housing with Zinc Plated Carbon Steel Screw
DBxxxSS Series — 200/300 Series Stainless Steel Band & Housing with 400 Series Stainless Steel Screw
DBxxxSS305 Series — 300 Series Stainless Steel Band & Housing with 300 Series Stainless Steel Screw
DBxxxSS316 Series — 316 Series Stainless Steel Band & Housing with 316 Series Stainless Steel Screw
Patent Number 4,667,375
Part Number
“A” Diameter Range
Double Plated Screws
“400”Series Stainless Screws
All “300” Series Stainless
All “316” Series Stainless
Decimals
Inches
Millimeters
Min.
Max.
Min.
Max.
Min.
Max.
DB16
DB16SS
DB16SS305
DB16SS316
0.63
1.38
5/8
1-3/8
15.9
34.9
DB20
DB20SS
DB20SS305
DB20SS316
0.69
1.63
11/16
1-5/8
17.5
41.4
DB24
DB24SS
DB24SS305
DB24SS316
0.94
1.88
15/16
1-7/8
23.8
47.6
DB28
DB28SS
DB28SS305
DB28SS316
1.19
2.13
1-3/16
2-1/8
30.2
54.0
DB32
DB32SS
DB32SS305
DB32SS316
1.44
2.38
1-7/16
2-3/8
36.5
60.3
DB36
DB36SS
DB36SS305
DB36SS316
1.69
2.63
1-11/16
2-5/8
4.9
66.7
DB40
DB40SS
DB40SS305
DB40SS316
1.94
2.88
1-15/16
2-7/8
49.2
73.0
DB44
DB44SS
DB44SS305
DB44SS316
2.19
3.13
2-3/16
3-1/8
55.6
79.4
DB48
DB48SS
DB48SS305
DB48SS316
2.44
3.38
2-7/16
3-3/8
61.9
85.7
DB52
DB52SS
DB52SS305
DB52SS316
2.69
3.63
2-11/16
3-5/8
68.3
92.1
DB56
DB56SS
DB56SS305
DB56SS316
2.94
3.88
2-15/16
3-7/8
74.6
98.4
DB60
DB60SS
DB60SS305
DB60SS316
3.19
4.13
3-3/16
4-1/8
81.0
104.8
