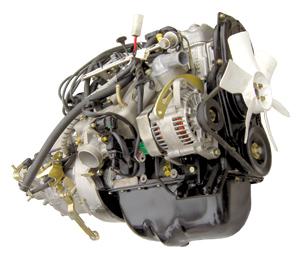

Product Name:F8A Automobile Engine

F8A Automobile Engine

Product Description:

4-cylinder, in line, 4-troke, water-cooled, single overhead camshaft (SOHC), electronic-fuel injection. It adopts multi-point sequence electronic controlled injection system, and combined with three-way catalytic converter. It is noted for its small displacement, high power per liter, low fuel consumption, minimum contamination, compact structure, light weight, small size and easy maintenance. Be applicable to motorcycle with three wheels, double cab mini truck and various mini vehicles. F8A Engine Main Technical Parameters Model 462Q/F8A Cylinder Bore (mm) 62 Stroke (mm) 66 Rated Power KW 22 r/min 5000 Max.Torque N.m 48 r/min 3500~4500 Min. Fuel Consumption (g/kW.h) 270 Fuel Consumption Ratio (%) ≤0.5 Idling(r/min) 900±50 Idling Emission CO% Low Idling/High Idling ≤0.38/≤0.2 HC ppm Low Idling/High Idling ≤80/≤60 Lube Pressure Idling Speed 150~350 3000 Speed 300~450 Rated Speed 350~500 Cylinder Compression Pressure kpa ≥1080 r/min 300 Advance Angle of Idling Ignition(degree) 10°±1° Cylinder Pressure Difference ≤100 Air Leakage of Piston ≤L/min 15.8 Compression Ratio 8.7:1 Gross Displacement (L) 0.797 Net Mass(excluding transmission)(kg) 101 Gross Mass(including transmission)(kg) / Dimensions(not including transmission) (L* W * H) (mm) 551*691*424

Chengdu Tianma Automobile Co., Ltd. Locates in Chengdu Plain, with a temperate climate, scenic, convenient traffic. Our company and products has been brought into "Notice" of the National Development and Reform Commission. We manufacture and sale "Fang Yuan" brand four-wheel low-speed vehicles, ...[Read More]
