Product Name:SPS 25A Glass Passivated Bridge Rectifiers Through Hole GBJ25005-GBJ2510

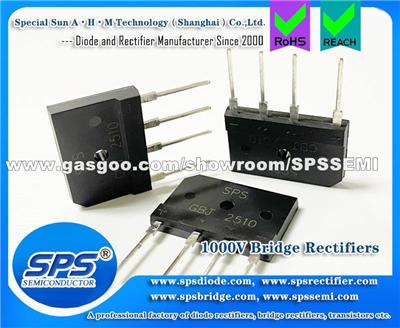

SPS 25A Glass Passivated Bridge Rectifiers Through Hole GBJ25005-GBJ2510

Application

ALL

Product Description:

Special Sun A·H·M TechnologyShanghaiCo.,Ltd.
SPS - ISO Factory for SMD and Through-hole Diodes and Rectifiers Since 2000

SPS 25A Glass Passivated Bridge Rectifiers Through Hole GBJ25005-GBJ2510

Features

Glass Passivated Die Construction

High Case Dielectric Strength of 2500VRMS

Low Reverse Leakage Current

Surge Overload Rating to 350A Peak

Ideal for Printed Circuit Board Applications

RoHS Compliant

Mechanical Data

Case: GBJ

Case Material: Molded Plastic

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Plated Leads

Polarity: Molded on Body

Mounting: Through Hole for #6 Screw

Marking: Type Number

Weight: 6.6 grams (approximate)

Characteristic Symbol

GBJ25005: 50V

GBJ2501: 100V

GBJ2502: 200V

GBJ2504: 400V

GBJ2506: 600V

GBJ2508: 800V

GBJ2510: 1000V

GBJ2510 is used widely in induction cooker, the role of GBJ2510 is to rectify, only change the polarity direction of its current, and will not change its current magnitude.

The internal structure of the bridge rectifier of the induction cooker and the bridge rectifier of the power amplifier is the same, consisting of 4 diode rectifiers. The difference is that withstand voltage and rectified current are different. The bridge rectifier of the induction cooker is to rectify the household AC220V voltage, its withstand voltage value is generally above 1000V, and the current is above 20A.

The withstand voltage of the bridge rectifier of the power amplifier is generally below 100V, and the rectified current is about 10A. Why is the withstand voltage value and rectified current of the power amplifier bridge rectifier relatively small, because the bridge rectifier of the power amplifier rectifies the voltage output by the power amplifier transformer, after passing through the transformer, its output voltage is below 100V, mostly 22-35V.
