Quick Details

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  5-8weeks

• Packing:

  Bulk

• Delivery Port:

  Shanghai

• Export Ratio:

  61% - 70%

• OE Experience:

  No

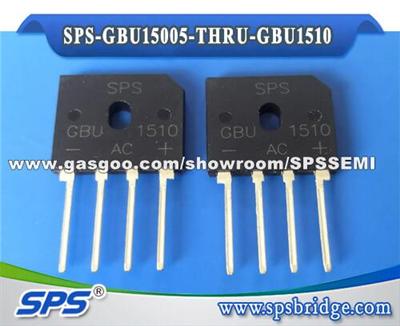

Product Name:SPS 15A 50V-1000V GPP Bridge Rectifiers GBU15005 GBU1501 GBU1502 GBU1504 GBU1506 GBU1508 GBU1510 GBU

SPS 15A 50V-1000V GPP Bridge Rectifiers GBU15005 GBU1501 GBU1502 GBU1504 GBU1506 GBU1508 GBU1510 GBU

Application

ALL

Product Description:

Special Sun AHM TechnologyShanghaiCo.,Ltd.

SPS Bridge Rectifier Manufacturer Since 2000

SPS brand bridge rectifier GBU15005-GBU1510 is used in small current products: small power switching power supplies, power adapters, LED lamp rectifiers, fans, televisions, indoor air conditioners, small household appliances and other related electrical products.

SPS products are original, good stability and reliability, welcome to consult and sample test.

SPS 15A 50V-1000V GPP Bridge Rectifiers GBU15005 GBU1501 GBU1502 GBU1504 GBU1506 GBU1508 GBU1510 GBU Package

Categories: Discrete Semiconductor Products

Diodes - Bridge Rectifiers

Packaging: Bulk

Part Status: Active

Diode Type: Single Phase

Technology: Standard

Voltage - Peak Reverse (Max): GBU15005-50V, GBU1501-100V, GBU1502-200V, GBU1504-400V, GBU1506-600V, GBU1508-800V, GBU1510-1000V

Current - Average Rectified (Io): 15A

Voltage - Forward (Vf) (Max) @ If: 1V

Current - Reverse Leakage @ Vr: 10µA

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Through Hole

Package / Case: 4-SIP, GBU

SPS is a professional manufacturer of semiconductors including bridge rectifiers, combining R & D, manufacturing, sales, and technical services.

big Square Bridge Rectifier: KBPC / MB, GBPC, S-35 plug-in Bridge Rectifier

MINI Bridge / Square Bridge: LBS, ABS, MBS, MBM, DB, DBS Bridge Rectifier

Four-pin one-pin long Flat Bridge Rectifier: KBP / RS-2, KBL / RS-4, KBU-RS-6 / RS-8 Bridge Rectifier

Four-pin Flat Bridge Rectifier: GBP, GBL, KBJ, GBU, GBJ Bridge Rectifier

Round Bridge Rectifier: RB, WOM, RC, WOG

Etc.

Check the best offer with SPS, a professional factory of diode rectifiers, bridge rectifiers, transistors etc.

Special Sun AHM Technology (Shanghai) Co.,Ltd. was established in 2000, with total investments of RMB250million, is a comprehensive enterprise that the first engaged in R&D, production and sales of electronic components. The company owns a large number of experienced technical and management ...[Read More]
