Quick Details

• Place of Origin:

  China

• Samples:

  Free

• Delivery Time:

  5-8weeks

• Packing:

  BULK,AMMO

• Delivery Port:

  Shanghai

• Export Ratio:

  51% - 60%

• OE Experience:

  No

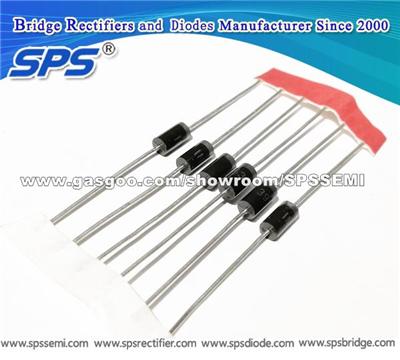

Product Name:SPS Axial Diodes Rectifiers DO-15 1N5391 THRU 1N5399 DO-41 1N4728A-1N4739A-1N4764A

SPS Axial Diodes Rectifiers DO-15 1N5391 THRU 1N5399 DO-41 1N4728A-1N4739A-1N4764A

Application

ALL

Product Description:

Special Sun A·H·M TechnologyShanghaiCo.,Ltd.
SPS - ISO Factory for SMD and Through-hole Diodes and Rectifiers Since 2000

SPS popular Axial Diodes Rectifiers:

DO-15 1N5391 THRU 1N5399 (1N5391, 1N5392, 1N5393, 1N5395, 1N5397, 1N5398,1N5399) General Purpose Plastic Rectifier

DO-41 Glass 1N4728A-1N4739A-1N4764A 3.3V to 100V Silicon Epitaxial Planar Zener Diodes

DO is an abbreviation of "diode", and 41 and 15 are package serial numbers.

The difference between DO-41 and DO-15 is as follows:

1. Different production specifications:

DO-41 diode body straightness diameter is in the range of 2.0mm ~ 2.7mm, the length of the diode body is between 4 ~ 5.2mm, the diameter of the two ends of the pin is between 0.71mm ~ 0.86mm, and the overall length is 25.4mm .

The diameter of DO15 diode body is in the range of 4.8mm ~ 5.3mm, the length of the diode body is between 7.2mm ~ 9.5mm, the diameter of the pin on both ends is between 1.2mm ~ 1.32mm, the overall length is also 25.4mm.

2. the chip load capacity is different:

DO-41 has large inner and outer diameters, thicker leads, and better heat dissipation. It is used to seal larger 1.0W chips; DO-15 has smaller inner and outer diameters, thin plug leads, and is often used to package chips with ≤0.5W.

The common package types of diodes are as follows:
DO-15, DO-41, DO-27, SOD-323, SOD-523, SOD-723, SOT-23, SOT-323, SOT-523 and other packaging forms.

Check the best offer with SPS, a professional factory of diode rectifiers, bridge rectifiers, transistors etc.

Special Sun AHM Technology (Shanghai) Co.,Ltd. was established in 2000, with total investments of RMB250million, is a comprehensive enterprise that the first engaged in R&D, production and sales of electronic components. The company owns a large number of experienced technical and management ...[Read More]

Company Profile:

• Main Product:

  Semiconductor

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

• Total Annual Sales:

  USD 10,000,001 - 50,000,000

Factory Profile:

• Number of Employees:

  401 - 500 People
