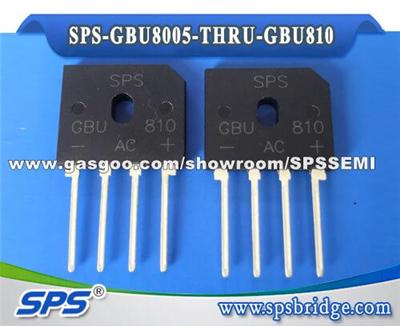

Product Name:SPS 8A 50V 1000V GPP Bridge Rectifiers GBU8005 GBU801 GBU802 GBU804 GBU806 GBU808 GBU810 GBU Package

SPS 8A 50V 1000V GPP Bridge Rectifiers GBU8005 GBU801 GBU802 GBU804 GBU806 GBU808 GBU810 GBU Package

Application

ALL

Product Description:

Special Sun AHM TechnologyShanghaiCo.,Ltd.

SPS Bridge Rectifier Manufacturer Since 2000

SPS 8A 50V 1000V GPP Bridge Rectifiers GBU8005 GBU801 GBU802 GBU804 GBU806 GBU808 GBU810 GBU Package

Categories: Discrete Semiconductor Products
Diodes - Bridge Rectifiers
Packaging: Bulk
Part Status: Active
Diode Type: Single Phase
Technology: Standard
Voltage - Peak Reverse (Max): GBU8005-50V GBU801-100V GBU802-200V GBU804-400V GBU806-600V GBU808-800V GBU810-1kV
Current - Average Rectified (Io): 8A
Voltage - Forward (Vf) (Max) @ If: 1V @ 4A
Current - Reverse Leakage @ Vr: 5µA
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Through Hole
Package / Case: 4-SIP, GBU

Differences between rectifier bridges KBU810, GBU810 and KBJ810:
These three models are mainly different in package volume and electrical parameters are the same. The KBU810 body is the largest and the GBU810 body is the thinnest. The pins between the two models are the same and can be used interchangeably. The KBJ810 has a slightly larger pitch, and the equal pitch is 7.5mm. It cannot be replaced with the previous two models.
