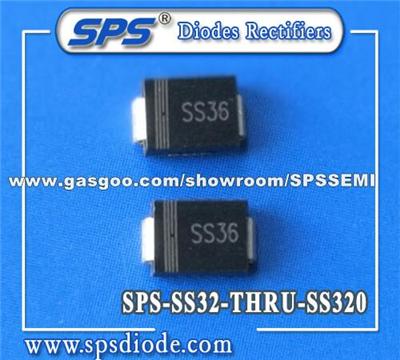

SPS 3A 20V 200V SKY SMD Diodes SS32 SS34 SS36 SS38 SS310 SS315 SS320 SMC Package
Product Category:Schottky Diodes & Rectifiers
Subcategory:Diodes & Rectifiers
Max.peak reverse voltage: SS32-20V SS32-30V SS34-40V SS32-50V SS36-60V SS38-80V SS310-100V SS315-150V SS320-200V
Mounting Style:SMD/SMT
Package / Case:DO-214AB,SMC
Technology:Si
Series:SS3xx
Packaging:TapeReel
Factory Pack Quantity:3000
Common Schottky diode parameters:
Schottky Barrier Diode, abbreviated as SBD, is made using a metal-semiconductor junction formed by the contact between a metal and a semiconductor. Schottky diode is a kind of most carrier conductive device, the reverse recovery charge is very small, the forward voltage is reduced, so the switching speed is very fast, the switching loss is particularly small, but its reverse breakdown voltage is relatively low, the reverse leakage The current is too high.
Common models of small signal Schottky barrier diodes are:
BAS40,BAS70,BAT42,BAT43,BAT54,RB521,RB751
The above are small-signal Schottky diodes, the current is relatively small, you can use a smaller chip package. Schottky diodes are more commonly used in switching power supplies because they have a smaller turn-on voltage drop and shorter reverse recovery time. They can improve the efficiency of switching power supplies. At this time, Schottky rectifiers are used, and the on-current is relatively large.
MBR0520, MBR0530, MBR0540
1N58171N58181N5819
SB120SB130SB140SB150SB160SB180SB190SB1100
SS120, SS130, SS140, SS150, SS160, SS180, SS1100
MBR120, MBR130, MBR140, MBR150, MBR160, MBR180, MBR1100, MBR1150, MBR1200
SB220, SB230, SB240, SB250, SB260, SB280. SB2100
SS220, SS230, SS240, SS250, SS260, SS280, SS2100
MBR220, MBR230, MBR240, MBR250, MBR260, MBR280, MBR2100, MBR2150, MBR2200
1N5820, 1N5821, 1N5822
SB320, SB330, SB340, SB350, SB360, SB380, SB390, SB3100, SS320
SS330, SS340, SS350, SS360, SS380, SS3100
MBR320, MBR330, MBR340, MBR350, MBR360, MBR380, MBR3100, MBR3150, MBR3200
SB520, SB530, SB540, SB550, SB560, SB580, SB590, SB5100
SS520, SS530, SS540, SS550, SS560, SS580, SS5100
SB820, SB830 ,SB840, SB850, SB860, SB880 ,SB8100
MBR1035, MBR1045, MBR1050, MBR1060, MBR1080, MBR10100
MBR1535, MBR1545, MBR1550, MBR1560, MBR1580, MBR15100
MBR2035, MBR2045, MBR2050, MBR2060, MBR2080, MBR20100
