relais 14vdc n o 40a relays for horn with 2 fuse

    • Application: all
    • Market Type:After Market
    • Price: US $1.5 - 2.5 / Piece
    • Payment Terms: L/C, T/T, Western Union,Paypal
    • Minimum Order: 100 Pieces

Quick Details

  • Supply Ability:

    200000 Piece/Pieces per Month

  • Delivery Details:

    7days after confirming the payment

  • Packing:

    100pcs/ctn 46.5*40*20cm 16.8KG

  • Delivery Port:

    Ningbo or Shanghai

  • OE Experience:

    No

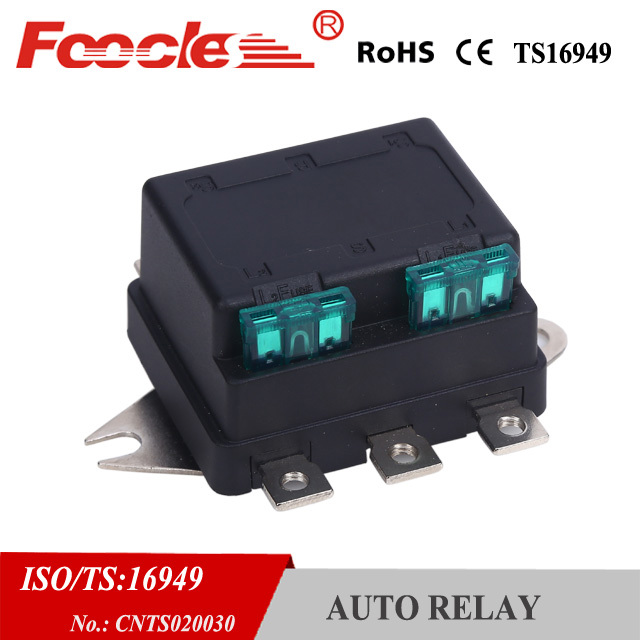

Product Name:relais 14vdc n o 40a relays for horn with 2 fuse

relais 14vdc n o 40a relays for horn with 2 fuse

Application

all

Product Description:

relais 14vdc n o 40a relays for horn with 2 fuse


Product Description



Features:



  • Miniature;

  • Contact load capacity up to 40A;
  • With double fuse;
  • Output with double relays;
  • Suitable for automobile.
  •

Contact Data:

Contact Form

2*1A(SPSTNO)
Contact Material

Ag Alloy

Contact Rating(resistive)

2*1A

2*30A/14VDC

Max. Switching Voltage

75VDC

Max.Switching Current

2*30A

Max.Switching Power

2*420W

Contact Resistance or Voltage drop≤100mΩ
Mechanical Life

1 X106

Electrical Life(min)

1 X105





Coil Parameter:



Coil voltage(VDC)Coil resistance Ω±10%Pick-up voltage(VDC)Release voltage VDC(Max.)Coil powerOperate TimeRelease Time
RatedMax.
67.812.53.90.62.88W   ≤7 ms≤5 ms
1215.6507.81.2
2431.220015.62.4



 Operation condition:

Insulation Resistance100MΩ Min.(at 500VDC)
Dielectric StrengthBetween Contacts50Hz 500VAC/1 minute
Between Coil and Contacts50Hz 750VAC
Shock resistance147m/s²  11ms
Vibration resistance10-40Hz double amplitude 1.5mm
Terminals strength100N
Solderability235鈩?plusmn;2鈩?3±0.5s
Ambient Temperature-40鈩儈+85鈩?/span>
Relative Humidity85%(at 40鈩?
Weight(Approx.)152g



Dimension / Wiring diagram:










_01.jpg_02.jpg_03.jpg_04.jpg_05.jpg_06.jpgQ1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
