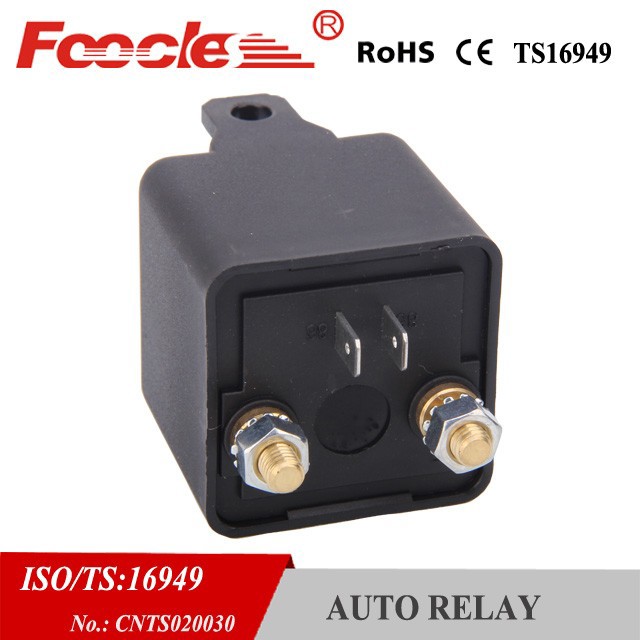

4pin auto high current relay 24v 100a auto relay

Application: all
Market Type:After Market
Price: US $2.5 - 4 / Piece
Payment Terms: L/C, T/T, Western Union,Paypal
Minimum Order: 100 Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Supply Ability:
200000 Piece/Pieces per Month
Delivery Details:
7days after confirming the payment
Packing:
100pcs/ctn 28*26*27.3cm 9.8KG
Delivery Port:
Ningbo or Shanghai
OE Experience:
No

Product Name:4pin auto high current relay 24v 100a auto relay

4pin auto high current relay 24v 100a auto relay

Application

all

Product Description:

4pin auto high current relay 24v 100a auto relay

Product Description

Features:

Miniature;
Contact load capacity up to 100A;
Suitable for automobile;
Quick connection for coil;
Bolt type terminal for contact load.

Contact Data:

Contact Form	1A(SPSTNO)
Contact Material	Ag Alloy
Max. Operating Current	100A/14VDC,120A/14VDC,200A/14VDC
Max. Operating Voltage	40VDC
Max.Switching Current	100A,200A
Max.Switching Power	1400W,2800W
Contact Resistance or Voltage drop	≤100mΩ
Mechanical Life	1 X10⁶
Electrical Life(min)	1 X10⁵

Coil Parameter:

Coil voltage(VDC)		Coil resistance Ω±10%	Pick-up voltage(VDC)	Release voltage VDC(Max.)	Coil power	Operate Time
Rated	Max.	Coil resistance Ω±10%	Pick-up voltage(VDC)	Release voltage VDC(Max.)	Coil power	Operate Time
6	7.8	7.5	3.9	0.6	4.8W	≤10 ms
6	7.8	15	3.9	0.6	2.4W
12	15.6	30	7.8	1.2	4.8W
12	15.6	60	7.8	1.2	2.4W
24	31.2	120	15.6	2.4	4.8W
24	31.2	240	15.6	2.4	2.4W

Operation condition:

Insulation Resistance		100MΩ Min.(at 500VDC)
Dielectric Strength	Between Contacts	50Hz 500VAC/1 minute
	Between Coil and Contacts	50Hz 750VAC
Shock resistance		147m/s² 11ms
Vibration resistance		10-40Hz double amplitude 1.5mm
Terminals strength		100N
Solderability		235鈩?plusmn;2鈩?3±0.5s
Ambient Temperature		-40鈩儈+85鈩?/span>
Relative Humidity		85%(at 40鈩?
Weight(Approx.)		90g

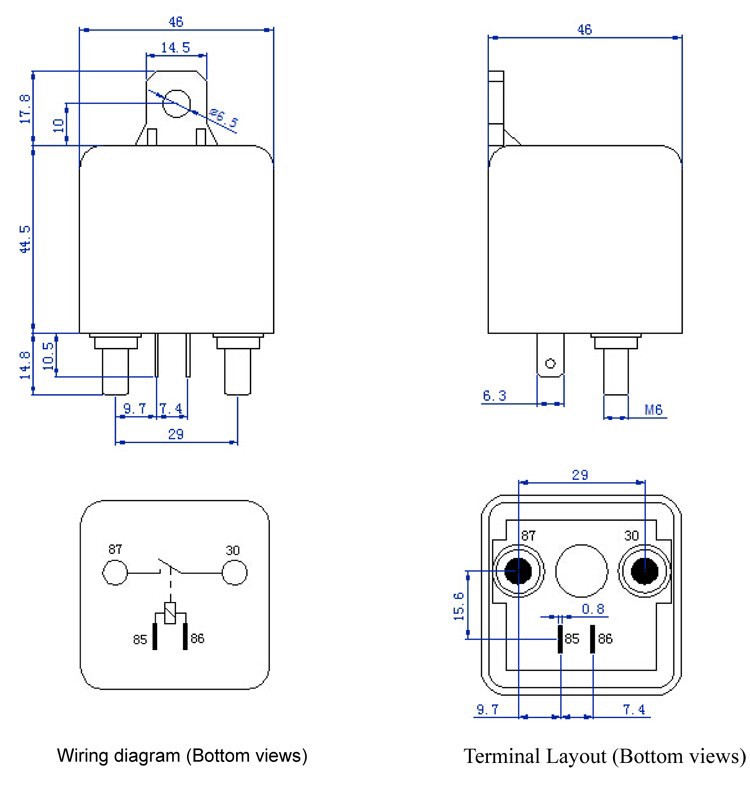

Dimension / Wiring diagram:
