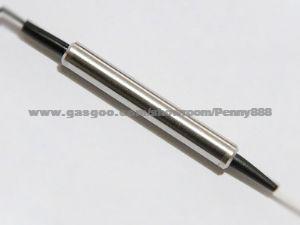

Product Name:980/1550 1480/1550 Filter WDM

980/1550 1480/1550 Filter WDM

Application

networking

Product Description:

OEM No/Model: 54/59 FWDM
Flyin optronics' Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path .

Features
   Low Insertion loss
   High Return loss
   Wide Operating Wavelength range
   High Channel Isolation
   High Stability and reliability
   Epoxy-free on Optical Path

Applications
    System Monitoring
    WDM Network
    Transmitters and Fiber Lasers
    Fiber Optical amplifier
    Fiber Optic Instruments
Performance Specifications

Parameter		MWDM-54	MWDM-59
Pass Channel Wavelength Range (nm)		1530~1565	1525~1600
Reflect Channel Wavelength (nm)		1450~1490	965~1000
Insertion Loss (dB)	Reflect Channel	0.5	0.7
	Pass Channel	0.6	0.9
Insertion Loss Variation		<0.3
Isolation @Add/Drop Channel	Reflect Channel	>15	>15
	Pass Channel	>25	>30
Inertion Loss Temperature Sensitivity (dB/)		<0.005
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB) (Input to add, Output to drop, add to drop		>50
Return Loss dB		>55
Maximum Power Handling (mW)		500
Opterating Temperature ()		-10~+75
Storage Temperature ()		-40~+85
Fiber Type		Corning SMF-28e fiber	Corning HI 1060 fiber at Common & Reflection port, SMF-28e fiber at pass port
Package Dimention		5.5x34 (L38 for 900um Loose tube)

Specification may change without notice.
Above specification are for device without connector.

Ordering Information

MWDM	X	X	X	XX
	Wavelength	Fiber Type	Fiber Length	In/Out Connector
	54=1550 pass/1480 reflect 59=1550 pass/980 reflect	1=Bare fiber 2=900um loose tube	1=1m 2=2m	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify
