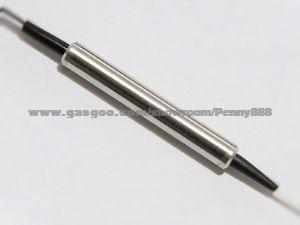

Flyin Optronics' Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Features
l Wide Operating Wavelength Range
l Low Insertion Loss
l Ultra Flat Wide Passband
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
Applications
l Testing Instruments
l FTTH Tri-Play System
Performance Specifications
Parameter |
FWDM 4/35 | FWDM 5/34 | FWDM 34/5 | |
Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360&1480~1500 | |
Reflection Band 1 Wavelength Range (nm) | 1260~1360 | 1260~1360 | 1540~1560 | |
Reflection Band 2 Wavelength Range (nm) | 1540~1560 | 1480~1500 | ||
Insertion loss (dB) | Reflect Channel | 0.6 | ||
Pass Channel | 0.8 | |||
Pass Band Rippler (dB) | <0.3 | |||
Isolation | Reflect Channel | >15 | ||
Pass Channel | >30 | |||
Insertion Loss Temperature Sensitivity (dB/) | <0.005 | |||
Polarization Dependent Loss (dB) | <0.1 | |||
Polarization Mode Dispersion (ps) | <0.1 | |||
Directivity (dB) | >50 | |||
Return loss (dB) | >50 | |||
Maximum Power Handling (mW) | 1000 | |||
Operating Temperature () | -20~+80 | |||
Storage Temperature () | -40~+85 | |||
Package Dimension (mm) | 5.5x34 (L38 for 900um Loose tube) |
MWDM |
X | X | X | XX |
Wavelength | Fiber Type | Fiber Length | In/Out Connector | |
4/35=1490 pass 1310&1550 reflect 5/34=1550 pass 1310&1490 reflect 34/5=1310&1490 pass 1550 reflect |
1=Bare fiber 2=900um loose tube |
1=1m 2=2m |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
