Quick Details

• Main Raw Material:

  FR4

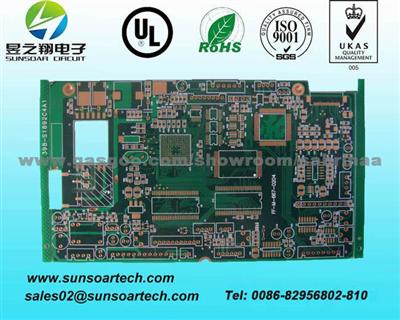

Product Name:ENIG And Half-Hole Pcb, 4-Layer BGA Pcb

ENIG And Half-Hole Pcb, 4-Layer BGA Pcb

Product Description:

OEM No/Model: YZX-PCB07

1.ROHS/UL/ISO9001
2. Min.order:1Piece
3.Payment:T/T,Western Union
4. Better After Service

PCB Process Capability

• processing layers:1-28 layers
• Finished thickness (thinnest - the thickest): 0.008 "~ 0.24" (0.20mm ~ 6.0mm)
• Minimum aperture: 6mil (0.15mm)
• Minimum line width / spacing :3-4 mil (0.076-0.10mm)
• Maximum board size: Single & Double 22 "x 43" (550 x1100mm), Multi-layer 22 "x 25" (550mm x 640mm)
• Impedance Control: ± 10%
• Surface Treatment: OSP,  HASL, Electric Nickel / Gold, Chemical nickel / gold, lead-free HASL , Gold finger, immersion Silver, Immersion Tin.
• Base materials: FR4 ( ShengYi, KB, International), high TG (TG150, TG170), halogen-free board (Halogen-free), high frequency plate (Rogers, Teflon, Taconic), made PTFE (PTFE) ,, AL aluminum plate (Berquist, Al-made basis), copper (Cu Base), Iron (Fe Base), ceramic substrate (Ceramic Base)


The Quick-turn service
24 hours for 2-Layer sample
48 hours for 4-Layer sample
72 hours for 6-Layer sample

Shenzhen Sunsoar Electronic Co.,LTD is a professional Printed fast Circuit Board manufacturer. Production bases located in Shenzhen Bao’an. After years of continued innovation and development, we have now set a PCB Business Unit and an FPC Board Business Unit ,and our production ability has up to ...[Read More]

Company Profile:

• Main Product:

  Pcb/ Fpcb/ Pcba/ Rigid Pcb/ Rigid-flex Pcb Board

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Mid East, Africa, Oceania

• Total Annual Sales:

  USD 100,000 - 500,000

Factory Profile:

• Number of Employees:

  101 - 200 People
