1. MDS(single phase Bridge Rectifier), MDQ(3 phase)
2. Reliable tube core
3.Superior Bridge Rectifier structure

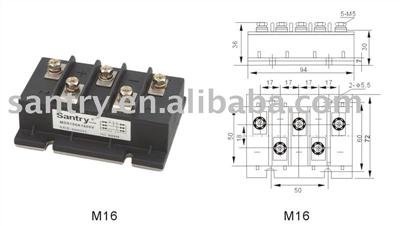

3 phase Bridge Rectifier Modules---MDS series
IO
Tc=100
VRRM
V
VFM
V
IRRM
mA
VISO
V
Rjc
/W
Tj
30A
600-2000
1.6
5
2500
0.4
-40-+150
50A
600-2000
1.6
5
2500
0.4
-40-+150
75A
600-2000
1.6
10
2500
0.3
-40-+150
100A
600-2000
1.6
10
2500
0.2
-40-+150
130A
600-2000
1.6
15
2500
0.12
-40-+150
160A
600-2000
1.6
15
2500
0.12
-40-+150
200A
600-2000
1.6
15
2500
0.12
-40-+150
Single phase Bridge Rectifier Modules---MDQ series
IO
Tc=100
VRRM
V
VFM
V
IRRM
mA
VISO
V
Rjc
/W
Tj
30A
600-2000
1.6
5
2500
0.4
-40-+150
50A
600-2000
1.6
5
2500
0.4
-40-+150
75A
600-2000
1.6
10
2500
0.3
-40-+150
100A
600-2000
1.6
10
2500
0.2
-40-+150
130A
600-2000
1.6
15
2500
0.12
-40-+150
160A
600-2000
1.6
15
2500
0.12
-40-+150
200A
600-2000
1.6
15
2500
0.12
-40-+150
