1. Robust plastic case with screw terminals
2. Easy chassis mounting
3. Large, isolated base plate
4. High surge currents

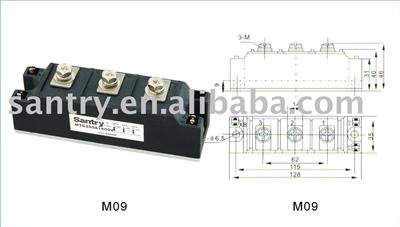

Thyristor rectifier module--- MTC, MTX series
IT(AV)
Tc=85
VDRM
VRRM
V
VTM
V
IDRM
IRRM
mA
IGT
mA
VGT
V
dv/dt
V/μs
VISO
V
Rjc
/W
55A
600-1600
1.6
15
≤80
≤2
≤200
2500
0.32
75A
600-1600
1.6
15
≤80
≤2
≤200
2500
0.32
90A
600-16000
1.6
15
≤80
≤2
≤200
2500
0.32
110A
600-1600
1.6
20
≤90
≤2
≤300
2500
0.2
130A
600-1600
1.6
20
≤90
≤2
≤300
2500
0.2
160A
600-1600
1.6
20
≤90
≤2
≤500
2500
0.2
200A
600-1600
1.6
30
≤100
≤2
500
2500
0.13
250A
600-1600
1.6
30
≤100
≤2
500
2500
0.13
300A
600-16000
1.6
40
≤120
≤2
500
2500
0.1
400A
600-1600
1.6
40
≤120
≤2
500
2500
0.08
500A
600-1600
1.6
40
≤120
≤2
500
2500
0.08
600A
600-1600
1.6
50
≤120
≤2
500
2500
0.06
800A
600-1600
1.6
50
≤120
≤2
500
2500
0.06
500A
600-16000
1.6
40
≤120
≤2
500
2500
0.08
600A
600-1600
1.6
50
≤120
≤2
500
2500
0.06
800A
600-1600
1.6
50
≤120
≤2
500
2500
0.06
1000A
600-1600
1.6
50
≤120
≤2
500
2500
0.06
