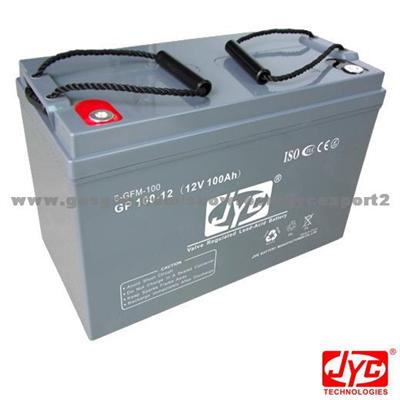

deep cycle battery for solar/wind power/ups 12V 100AH
Specifications
Nominal Voltage | 12V | |
Rated Capacity (20 hour rate) | 100AH | |
Dimension | Length | 329mm±1mm |
Width | 172mm±1mm | |
Height 12V 100AH deep cycle battery for solar, wind power, inverters.ups | 214mm±1mm | |
Total Height(with terminals) | 219mm±1mm | |
N.Weight | Approx.28.2 ±0.4kg | |
Capacity 77ºF(25ºC) | 20 hour rate (5A to 10.5Volts) | 100AH |
10 hour rate (9.3A to 10.5Volts) | 93AH | |
5 hour rate (17A to 10.2Volts) | 85AH | |
1 hour rate (60A to 9.6Volts) | 60AH | |
Internal Resistance | Full charged 77ºF(25ºC) | 4.6m |
Standard Terminal | M6 |
Typical Applications
1.Tele-communication central station (wired or cellular)
2.Power system communication, military communication, etc.
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)Battery general features
