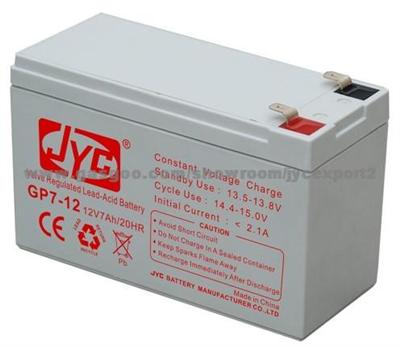

Image for Deep Cycle Lead Acid Battery 12V7AH

Deep Cycle Lead Acid Battery 12V7AH

Application: Nissan
OEM No/Model: NP7-12 (12V 7Ah)
Market Type:After Market
FOB Price: Inquiry For It?
Payment Terms: T/T
Samples: Not Available
Minimum Order: 150Piece/Pieces

Contact Supplier no sign-up required

Add to Favorites

Product Details

Company Profile

Quick Details

Voltage:
12v
Type:
Lead-acid batteries
Length:
151mm
Width:
65mm
Height:
94mm
Weight :
2.3kg
Place of Origin:
China
Samples:
Not Available
Delivery Time:
3 Weeks After Receiving The Deposit
Packing:
With Cartons
Delivery Port:
Guangzhou
Max. Production Capacity:
300000 Piece/Pieces Per Day JYC Has Annual Install
Export Ratio:
41% - 50%
OE Experience:
No

Product Name:Deep Cycle Lead Acid Battery 12V7AH

Deep Cycle Lead Acid Battery 12V7AH

Application

Nissan

Product Description:

OEM No/Model: NP7-12 (12V 7Ah)

Sealed Lead acid battery/ups battery

Maintenance Free

Brand:JYC

Color:Grayish

Norminal Voltage:12V

Capacity:7AH

Dimension:151mm(L)*64mm(W)*94mm(H)*100mm(TH)

Introduction

JYC Battery Co. is a state-of-art company devoted to research, develop and manufacturing of the Lead Acid battery. Through 10 years of development, JYC has grown to well-known and the most reliable storage battery brand at home and abroad. With a 100,000 square meter manufacturing plant finely tuned for efficiency, strong innovation capability from our R&D team, ISO standard manufacturing processes, effective management, and the awareness of being an industry leader in the supplier of VRLA batteries.
OEM/ ODM welcome.

Typical Applications:

1.Tele-communication central station (wired or cellular)
2.Power system communication, military communication, etc.
3.Network communication including: data transmission, television signal transmission, etc.
4.Uninterruptable Power System (UPS- for Telecom)Battery general features

.jpg

Specifications:

Battery Model	JYC NP7-12 12V 7AH
Nomial Capacity(15min Rate)	28.4 Watte at 1.67V/cell
Dimension	Length	151±1mm
	Width	64±1mm
	Container Height	94±1mm
	Total Height (with Terminal)	100±1mm
Approx Weight	Approx 2.1 kg
Terminal	T1 / T2
Container Material	ABS
Rated Capacity	7.20 AH/0.72A (10hr ,1.80V/cell,25⁰C/77⁰F) 7.00 AH/0.875A (8hr,1.80V/cell,25⁰C/77⁰F) 6.40 AH/1.28A (5hr,1.75V/cell,25⁰C/77⁰F) 5.97 AH/1.99A (3hr,1.75V/cell,25⁰C/77⁰F) 5.91 AH/5.91A (1hr,1.60V/cell,25⁰C/77⁰F)
Max. Discharge Current	105A (5s)
Internal Resistance	Approx 20mÙ
Operating Temp.Range	Discharge : -15~50⁰C (5 ~122⁰F) Charge : 0~40⁰C (32 ~104⁰F ) Storage : -15~40⁰C (5~104⁰F)
Nominal Operating Temp. Range	253⁰C (775⁰F )
Cycle Use	Initial Charging Current less than 2.1A.Voltage 14.4V~15.0V at 25⁰ C(770 F)Temp. Coefficient -30mV/⁰C
Standby Use	No limit on Initial Charging Current Voltage 13.5V~13.8V at 25⁰ C(77⁰ F)Temp. Coefficient -20mV/⁰C
Capacity affected by Temperature	40 ⁰C (104 ⁰ F) 103% 25 ⁰C ( 77 ⁰F ) 100% 0 ⁰C ( 32 ⁰F ) 86%
Self Discharge	JYC NP series batterys may be stored for up to 6 months at 25⁰ C(77⁰F) and then a freshening charge is required. For higher temperatures the time interval will be shorter.

certificate certificate 2

Characteristics of vrla battery:

1. Excellent safety performance: No electrolyte leakage, battery swelling and cracking under normal use.

2. High shock-proof performance: The fully charged and completely fixed battery, with 4mm amplitude and 16.7HZ frequency do have a normal open circuit voltage without leakage, batteries swelling or cracking problem after one-hour vibration.

3. High discharging performance: With smooth discharging voltage and mild discharging platform.

4. High resistance to overdischarge: In temperature of 25 degrees Celsius, the fully charged battery discharges with fixed resistance which is equivalent to the one required by 1 CA discharge of the battery for three weeks, and it can restore capacity over 75%.

5. High impact-proof performance: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking after droping three times from 20cm height naturally to a 1 cm-thick hardwood board.

6. High resistance to high current: The fully charged battery is proved to be without conductive part melted or any appearance deformation after discharging at 2 CA for 5 minutes or 10 CA for 5 seconds.

7. High resistance to overcharge: The fully charged battery is proved to maintian normal open circuit voltage and be without leakage or batteries swelling or cracking in temperature of 25 degrees Celsius after chargeing at 0.1 CA for 48 hours, and the capacity maintian over 95%.
