Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  50pcs/standard export carton, carton size:49.5x43.5x18.5cm

• Delivery Port:

  Zhongshan

• OE Experience:

  No

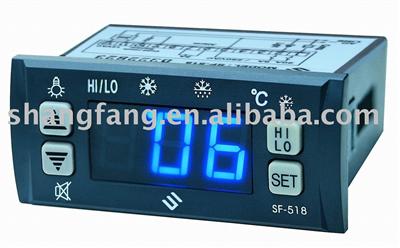

Product Name:Digital Temperature Controller SF-518

Digital Temperature Controller SF-518

Application

Auto

Product Description:

Digital Temperature Controller

1. CE, CQC, RoHS approved

2. With blue display

3.Waterproof panel

4.For medical freezers

5.Can control 1HP compressor directly

6.Automatically defrost by turning off the unit
7.Highest &lowest temperature record

8.Light control

9.Alarm for highlow temperature overrun

10.Alarm delay

11.Parameter locking / Self-testing
12. Temperature range:-45 to 45oC
13. Accuracy: ±1oC

14. Sensor:NTC, 1pc

15.Power supply: 230VAC or 120VAC      50/60Hz
16. Compressor: 20A / 1HP

17. Light: 5A / 250 VAC

18. Alarm output:12VDC 20mA

19. Dimension: 77(L)×35(W)×60(D)mm

20. Mounting hole dimension: 71(L)×29(W)mm

ParameteFunctionSet rangeDefaultE1Lower setpoint limit-45oC to Set temp.0oCE2Higher setpoint limitSet temp. to 50oC12oCE3Temp.hysteresis1 to 10oC3oCE4Comp.start delay time0 to 10Min2MinE5Offset on room temp.-5 to 5oC0F1Max.Defrost duration1 to 60Min20MinF2Defrost interval time0 to 24Hr6HrF4Display during defrost0=Normal display
1=Last value before defrost1C1High temperature alarm(C2+1) to 45oC9oCC2Low temperature alarm-45oC to (C1-1)1oCC3Time delay of alarm and memory when starting(0 to 24)×10Min06C4Time delay of alarm when working0 to 60Min0Min
