Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  50pcs/standard export carton, carton size:49.5x43.5x18.5cm

• Delivery Port:

  Zhongshan

• OE Experience:

  No

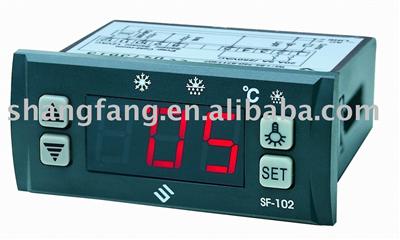

Product Name:Digital Temperature Controller Sf-102

Digital Temperature Controller Sf-102

Application

Car

Product Description:

Digital temperature controller
1. UL,CUL, CE, CQC, RoHS
2. 230VAC or 120VAC, 50/60Hz
3. Range: -45 to45oC
4. 20A Compressor

1. Digital temperature controller

2. CE, UL&cUL approved

3. For fan cooling freezers of medium & high temperatures

4. Waterproof panel

5. Automaticallymanually defrost by turning off the unit

6. Time/temp.setting to end defrosting

7. Re-start delay

8. Celsius / Fahrenheit degree selection

9. Parameter locking / Light control

10. Temperature range: -45 to 45oC(-40 to 120o F)

11. Accuracy: ±1oC (±2o F)

12. Sensor: NTC, 2pcs (room temperature & defrosting control)

13. Power supply: 230VAC or 120VAC   50/60Hz

14. Compressor: 20A/250VAC (1hp)

15. Light:5A /250AVAC

16. Dimension:77x35x60mm

Parameter Function Set rangeDefaultE1Lower setpoint limit-45oC/-40oF to Set temp.-35oC/-31oFE2Higher setpoint limitSet temp. to 45oC/120oF20oC/68oFE3Temp.Hysteresis1 to 10oC/1 to 18oF4oC/7oFE4Comp.start delay time0 to 10Min2MinE5Offset on room temp.-5 to 5oC/oF0E6Offset on evap.Temp.-5 to 5oC/oF0F1Max.Defrost duration1 to 60Min20MinF2Defrost interval time0 to 24Hr6HrF3Defrost termination temp.0 to 20oC/32 to 68oF8oC/46oFF4Display during defrost0=Normal display
1=Last value before defrost0C1Temperature unit0=oC / 1=oF0
