Quick Details

• Place of Origin:

  China (Mainland)

• OE Experience:

  No

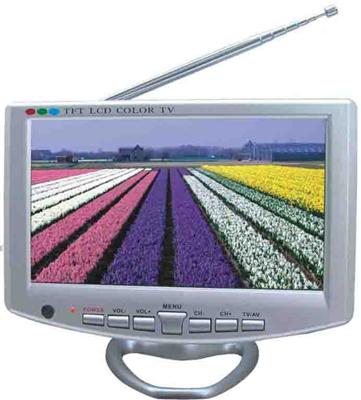

Product Name:TFT LCD/Car monitor

TFT LCD/Car monitor

Application

Universal

Product Description:

Power Consumption: DC 12V 700mA
Screen Size : 7inch 16:9
TV system: 1、PAL -D/K 、I 、B/G
2、NTSC-M
3、NTSC-M + PAL-M/N
4、PAL + SECAM-D/K、I、B/G
RF input range: 47--870MHz
VIDEO input: 1Vp-p CVBS
AUDIO input/output:2V p-p
speaker:1W（max）
Resolution: 480*234pixel
Active display area:155（W）*88（H）mm
Pixel pitch:0.107(W)*0.370(H) mm
Viewing angle range :120H/140V deg
Brightness:300 cd/m2
Contrast ratio:300：1
Response time : 12 ms
Operating temperature: 0---60 centigrade
Dimension:188*129*30mm
Package dimension: 333*220*72mm
Weight :1.2kg

Guangzhou JingCheng Technology Co.,LTD is a hi-tech company specializing in marketing the LCD series products.Our main products cover Car TFT LCD series, car LCD TV series,and etc. hi-tech series.Glasses LCD TV series。 The products export to Europe, Mildest, American, Asia and Africa all over the ...[Read More]
