Quick Details

• Power:

  10w

• Place of Origin:

  China (Mainland)

• OE Experience:

  No

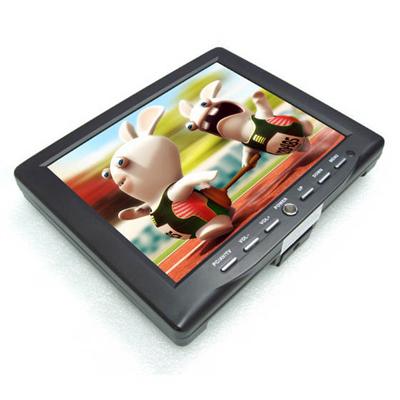

Product Name:8 inch car TFT LCD monitor with touch

8 inch car TFT LCD monitor with touch

Application

Universal

Product Description:

Four wires resistive touch-screen interface (USB port)
Standard VGA input (15 pin D-SUB) can match with PC, GPS and security systems
Two RCA video input can match with VCD, DVD and camera
RGB input for navigation display (optional)
Touch-screen for PC display (optional)
Built-in speaker/amplifier and earphone jack
PC operation system: DOS/Window9XME,2KXPVistaNT Windows CE / LINUX / Mac

*8″Digital TFT Touch Monitor
Model: 880
Description: 8″ TFT Touch Monitor
Case/Bezel Colour: Black/silver
Touchmonitor Performance: Standard
Display Type: 4:3 Ratio 8″Active Matrix TFT LCD
Active DisplayArea: 162(W) X 121.5(H) mm
Native Resolution :800 x 600_60Hz1024 x 768_75Hz
Sychronization Range: 30-80 KHz horizontal, 55-75 Hz Vertical
Pixel Pitch: 0.0675(W) X 0.2025(H) mm
Pixel Response Time Rise + Fall (Typically): 12ms
Plug and Play: VESA DDC 1/2B
On Screen Display (OSD): Remote OSD
Colours: 16.7 million
Brightness: 350 cd/m2
Contrast Ratio Typically: 400:1
ViewingAngle Horizontal (left/right): 170° (85°/85°)
(From Centre, CR>=5) Vertical (up/down): 160° (70°/90°)
Backlight Lamp life Hrs to 1/2 brightness: 50,000
Input Video Format:Analog RGB ,NTSC/PAL/SCAME(AUTO)
Touchscreen Interface: Serial (RS232) or USB
Touch Response Time Serial/USB: 10.4ms
Touch Sensitivity: Fixed
Operating System:DOS/Window9XME,2KXPVistaNT Windows CE / LINUX / Mac
Monitor Dimensions: 205 x 163 x 31(mm)
Shipping Carton Dimensions: 250 x 85 x 403(mm)
Provider Weight (approximately) Monitor/Shipping: 1.5kg
Power Supply: External: 85-265VAC, 50-60 Hz
Power Consumption: <10 W Typ
Temperature Range: Operating:0℃-50℃,
Storage:-20℃-80℃
Relative Humidity Non Condensing:Operating:10%-90%, Storage 5%-90%
Warranty: 1 years
AgencyApprovals: FCC, CE, RoHS

Accessories
Serial or USB cable
VGA Video cable
Remote
Power Supply Adaptor
Power Lead (US, EU or UK type)
Software CD
User Manual (English only)
Touch Pan
Bracket
