Designation |

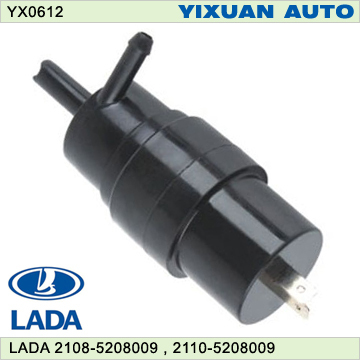

LADA 2108 2110 Windshield washer pump |
|
OE NO. |
2108-5208009 / 2108-5208009 |
|
Car model |
VAZ2108,09, VAZ1111"OKA", VAZ2121 "NIVA"; ZAZ1102, IZH2126 |
|
GAZ31029, GAZ3102, GAZ3110, VAZ2104…2107 |
|
VAZ2110, SHEVYNIVA, ZIL "BICHOK" |
|
"KAMAZ", "URAL", "MAZ", All cars with voltage 24V |
|
Weight |
0.085KG |
|
|
|
Test type |
Routing test |
|
Serial number |
|
|
Car model |
VAZ 2108,09, VAZ1111"OKA", VAZ2121 "NIVA", ZAZ1102, IZH2126 |
|
|
General specification |
Test characteristics |
|
Consumed voltage |
12V |
12V |
|
No load current |
0.4~1.5A |
0.5~0.9A |
|
Max continuous Current |
≤3.5A |
2.8~3.4A |
|
Fluid pressure |
≥1.6kgf/cm2 |
≥1.6kgf/cm2 |
|
Flow Rate |
≥80ml/10s [with P=0.9kgf/cm2 (88kpa)] |
120~150ml/10s [with P=0.9kgf/cm2 (88kpa)] |
|
Noise(LP) |
≤70dB |
19~46dB |
|
|
|
Serial number |
|
|
Car model |
VAZ2110,SHEVYNIVA,ZIL"BICHOK" |
|
|
General specification |
Test characteristics |
|
Consumed voltage: |
12V |
12V |
|
No load current |
0.5~1.5A |
0.5~0.9A |
|
Max continuous Current |
≤4.0A |
2.8~3.4A |
|
Fluid pressure |
≥2.5kgf/cm2 |
≥2.5kgf/cm2 |
|
Flow Rate |
≥160ml/10s [with P= 0.9kgf/cm2 (88kpa)] |
180~280ml/10s [with P= 0.9kgf/cm2 (88kpa)] |
|
Noise(LP) |
≤70dB |
22~46dB |
|
|
|
|
Serial number |
|
|
Car model |
"KAMAZ","URAL","MAZ", All cars with voltage 24V |
|
|
General specification |
Test characteristics |
|
Consumed voltage: |
24V |
24V |
|
No load current |
0.2-1.0 A |
0.3-0.8 A |
|
Max continuous Current |
≤1.8A |
1.0~1.7A |
|
Fluid pressure |
≥1.1kgf/cm2 |
≥1.6kgf/cm2 |
|
Flow Rate |
≥100ml/10s [with P= 0.9kgf/cm2 (88kpa)] |
180~280 ml/10s [with P= 0.9kgf/cm2 (88kpa)] |
|
Noise(LP) |
≤70dB |
22~46dB |
|
|
|
Temperature-rise |
-50鈩?/span>~85鈩?/span>(-58鈩?/span>~176鈩?/span>) |
|
Insulation resistance |
≥1MΩ(QC/ T548-1999) |
|
Type of Duty |
Short-time duty – duty type S2(GB755-2008) |
|
Cooling of method |
IC411 soft ventilated(IEC 34-6) |
|
Ingress Protection |
IP44(IEC60034-5:1991) |
|
Warranty period of operation |
2 years or 125000km car travelled |
|
Standard |
IEC 34-6, IEC60034-5:1991, QC/T 548-1999, GB755-2008, (IEC, GB, JIS, NEC, IEEE) |
