Honda Diagnostic System Tool

Applicationt:

Honda (Odyssey, City, Fit, Accord, CR-V, Civic, Stream, FCX)

Production Description:

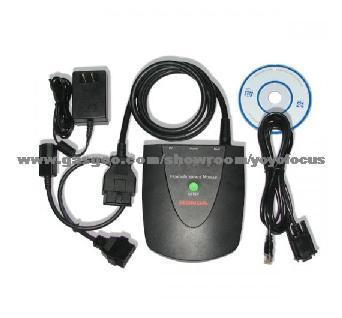

This interface module kit works with the OEM- Honda Diagnostic PC Software (HDS). It can diagnose all Honda and Acura vehicle systems on models from 1992 to year 2008, Including CAN- BUS system. Functions supported by Honda/ Acura protocols: Reading and decoding fault codes from control blocks' memory; Deleting fault codes; Displays system's current parameters in digital form; Displays system's current parameters in graphical form; Combined displaying of data; Management of executive devices; Logs keeping - Writing and keeping of digital parameters in memory; Special functions - Changing of permissible settings of blocks, Programming etc. Functions supported by OBD- II protocols: Mode 1 - Displays system's current parameters in digital form (up to 8 parameters at once); Mode 2 - Displays parameters of " Freeze" Frame; Mode 3 - Reading and decoding of fault codes from control block's memory; Mode 4 - Deleting of fault codes (memory clearing); Mode 5 - Displays results of oxygen sensors; Mode 6 - Displays results of changeably controled systems and components; Mode 7 - Displays results of constantly controled systems and components; Mode 8 - Management of executive devices; Mode 9 - Displays car's identification info. Hardware and software requirements: PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later) Hard disk drive with at least 400MB of free space CD- ROM drive (if a high- Speed Internet connection is not available) RS232 port required to connect PC to HIM (PC version software only) Monitor capable of displaying in VGA mode or above (1024 x 768 recommended) Internet connection (high- Speed connection recommended) Honda Diagnostic System kit includes: 1 x HIM with OBD II Cable 1 x DVD 1 x 3 Pin Cable 1 x RS232 Cable 2 x Selftest Adapter 1 x Storage Case
