Windshield Wiper System

Windshield Wiper System

Market Type:  After Market

Packing:  One piece of wiper motor in a box, 5 pieces in a carton; or per customers requirements.

Delivery Port:  Shanghai

Minimum Order:  100 Sets

Product Attribute:

Production Description:

Tractor Wiper Motor Assembly

Type: ZD1530/ZD2530



Technical parameters:



Model



      ZD1530

          ZD2530

Rating Voltage

UN

     12V

24V

Rating Power

PN

               50W

No Load Current

T

                2.0/2.5A                           1.5/2.5A

No Load Speed

nN

45/65±5RPM

Load Current

ID

6.5/7.5A                            3.5/5A

Load Speed

nD

40/60±5RPM

Wipr Angle

60,65,70,75,80,85,90,95,100,105

Protection Circuit

                              EMC or RFI

Protection Class



IP33

Weight

W

2kg



Features:

1. Swing output;

2. Compact, series design;

3. Convenient installation, small space occupation;

4. Multi functional selectivity combination (Reset, with switch, single or double speed)



Application:

1. Loders, excavators, bulldozers, autocrane.

2. Bus, agricultural vehicle, engineering vehicle.

3. Boats, ships cockpit.

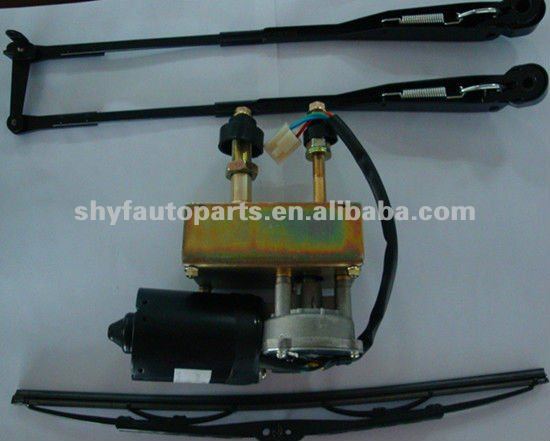

Photos of wiper motor:





Matched with 450mm wiper blade and 460mm double pole wiper arm







Photo of wiper assembly





Equipments and facilities in wiper motor workshop





Main Customers





Shanghai Xinyong Auto Parts Co., Ltd is manufacturer of windshield wipers with  over 30-years experience. The product ranges wiper blade, wiper arm, wiper linkage, wiper motor, washers, washer pump, wiper assembly for car, big bus, truck, ship, train, tractor and engineering vehicle under the brand name of 'XY'.



We can produce wiper blades from 12" - 40" (300mm~1000mm). Our wiper motor, wiper assembly for big bus, engineering vehicle are popular not only in China but also in foreign country, the annual capacity for wiper motor is 1,000,000 pieces, exported to America, England, Netherland, etc.



We own strong Research and Development Department, can accept OEM/ODM orders, making windshield wiper products according to samples or drawings, welcome customers to develop new products together with us.



Remark: The photos showed here are for your reference. Welcome customerized designs/drawings cooperation.
