Product Attribute:
Type:wiper motor
Car Make:European truck
OE NO.:No
Place of Origin:Shanghai China (Mainland)
Brand Name:XY
Model Number:ZD2831
Type:DC vwiper motor
Power:80W
Lifetime:1,500,000 cycles
Warranty:360 days
Manufacturer:Shanghai
Experience:30 years
Certificate:CE, TS16949
Size:1.5kg
Applicationt:
European truck
Production Description:
Product Description
80W 24V Wiper Motor 72 Diameter Installation for European Truck
Features:
1.Swing output.
2.Reinforced design.
3.Convenient installation,small space.
4.Matching EMC.RFI.INT.
Technical parameters:
| Nominal voltage | 12V | 24V |
| Nominal power | 80W |
| No load current | 2.0/2.5A | 1.5/2.5A |
| No load speed | 30/51 ±5rpm |
| Load current | 6.5/7.5A | 3.5/5A |
| Load speed | 25/46 ±5rpm |
| Stall current | 31A | 16A |
| Stall torque | 50Nm |
| Protection circuit | EMC. RFI. |
| Protection grade | IP33 |
| Weight | 1.5Kg |

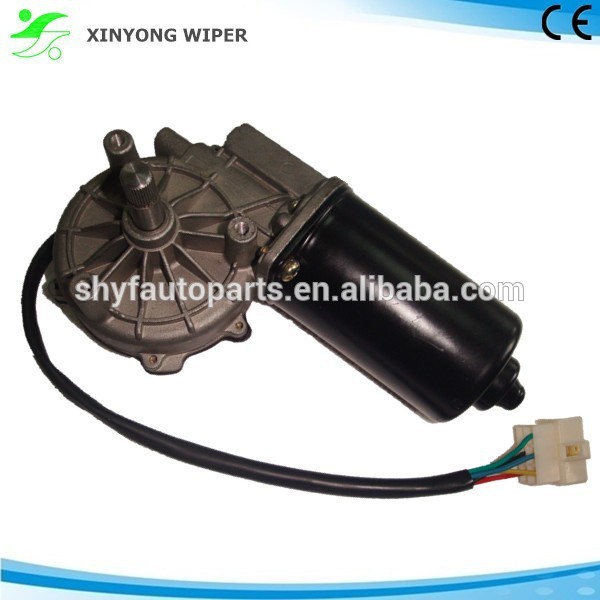

Pictures of ZD2831 wiper motor:
Wiper motor connector:
| Connector type | Red wire | Black wire | Blue wire | Green wire | Yellow wire |
| 6 holes 5 wires | Positive | Negative | High speed | Low speed | Reset |
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Packaging & ShippingPackage: each one in a box, 10 boxes in a carton.
Carton size: 70x22x15cm
Weight of each carton: 16Kg
Volume of each carton: 0.0231CBM
Delivery time: within 30 days after order
We can arrange you air or sea shipment, also welcome information of your forwarder.
Our ServicesFree samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem at the first time.
Company InformationWiper Motor workshop:
Certificates:
FAQProduction: Usually within 30 days after order.
payment term: 30% in advance, 70% after copy of B/L, or negotation.
Package: Usually in carton package, also we can follow your requirements.
Please write me email if any other questions.
