Product Attribute:
Type:Wiper motor
Car Make:Volvo, Daweoo
OE NO.:259.9021.3B.00
Place of Origin:Shanghai China (Mainland)
Brand Name:XY
Model Number:ZD11530/ZD21530
Color:Black
Power:150W
Voltage:24V
Speed:double speed
Park:left or right
Wire:copper
Lifetime:more than 1.5 million
Factory:Shanghai
Certificates:CE, TS16949-2002
Size:12V/24V 150W
Applicationt:
Daewoo, Sunwin bus
Production Description:

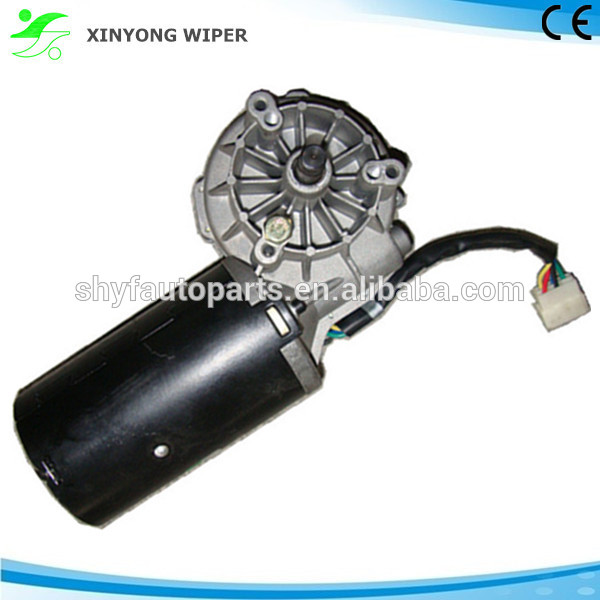

Product Description24V 30/45 Low RPM DOGA 259.9021.3B.00 DC Wiper Motor
Type: ZD11350/ZD21350
Technical Parameters
Model | | ZD11350 | ZD21350 |
Rating Voltage | UN | 12V | 24V |
Rating Power | PN | 150W |
No Load Current | IN | 2.0/2.5A |
No Load Speed | nN | 25/40±5RPM |
Load Current | ID | 8/10A |
Load Speed | nD | 20/35±5RPM |
Wipr Angle | a° | 70-98 |
Protection Circuit | EMC or RFI |
Protection Class | | IP33 |
Weight | W | 4.8kg |
ZD21350 wiper motor drawing: More pictures of wiper motor:
Wiper motor connector:
| Connector type | Red wire | Black wire | Blue wire | Green wire | Yellow wire |
| 6 holes 5 wires | Positive | Negative | High speed | Low speed | Reset |
Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.
Working temperature: -40°c - 65 °c
We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical Equipments, QC/T29090-1992 Automotive Wiper Motor Technology Requirements.
Packaging & Shipping
5pcs in a foam box, then into carton
Carton size: 76x30x21cm
Gross weight of each caton: 25Kg/5pcs
We can arrange shipment for you, also we welcome your forwarder information.
Package picture:
Our Services
Free samples are for serious customer.
Your OEM sample and ODM design are welcomed.
Please let us know in time if there is any problems with our products, we will solve the problem in time.
Company Information
Wiper Motor Assembly Line:
FAQ
Production: Usually within 20 days after order.
payment term: 30% in advance, 70% after copy of B/L, or negotation.
Package: Usually in carton package, also we can follow your requirements.
Please write me email if any other questions.
