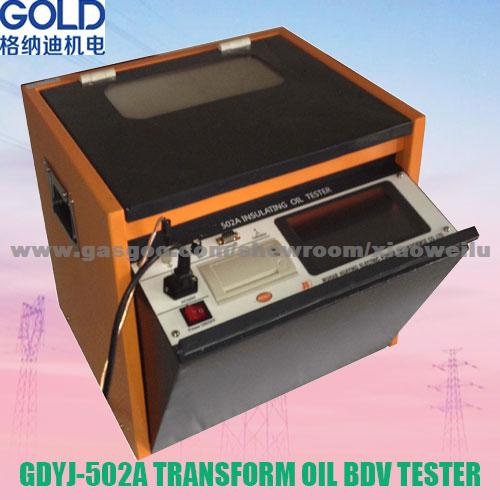

GDYJ-502 100 KV Transformer Oil BDV Test Kit

Product Attribute:

Applicationt:

GOLD

Production Description:

GDYJ-502 Transformer Oil Breakdown Voltage Tester
Standard
 1.IEC6015/IEC6792/BS5874
 2.ASTM D1816 standard test
 3.ASTM D877 standard test
 4.GB-86 Insulating Oil Dielectric Strength Testing Method

General introduction
1. The oil dielectric strength tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .
2. The oil dielectric strength tester has big LCD screen which can display test procedure and test result.
3. All the human interaction operations complete by the rotating mouse .
4.the transformer oil test equipmentthe micro printer internal the tester.
5.the oil dielectric strength tester has RS232 PC port for data analyzing.
The special circuit design makes the tester has a good performance at stability and anti-noise.
 Functions
1 Breakdown test of user-defined
2 Proof test
3 IEC156/IS6792/BS5874/
4 ASTM D1816 standard test
5 ASTM D877 standard test
6 5 minutes standard test
7 Manual test
8 Calibration interface for customers
9 Unloading data to PC and making word report automatically.10 Result print

Power supply	AC 220V
Output voltage	AC 0V~100KV
Rate of voltage rise	0.5kv/s±10%, 2kv/s±10%, 3kv/s±10%,5kv/s±10%
Max test times	9
Stir time	0~999s
Wait time	0~999s
Test error	3% max in the range of 10kv~100kv
Weight	41kg
Size	620 mm*430mm*330mm

Technique


















index
