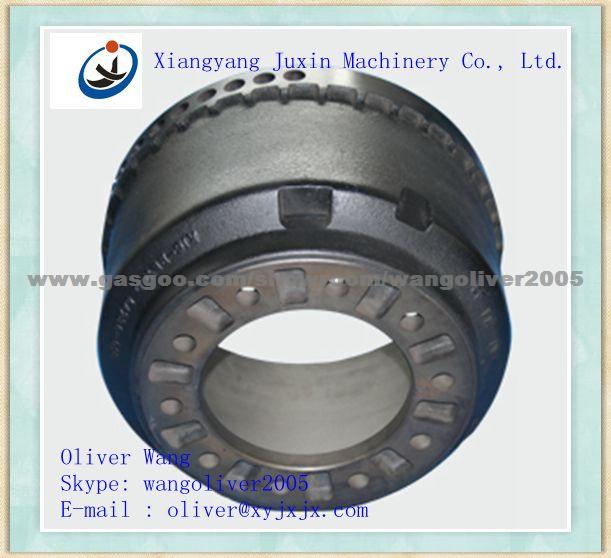

Brake Drum KIC 33314508

Product Attribute:

Material:Gray Iron

Applicationt:

KIC OEM NO. (Reference NO. 333-14508)

Production Description:

Brake Drum KIC 33314508

Application: KIC

OEM NO./Reference NO.  333-14508

1. Component::
C  3.0%-3.4%
Si  1.6%-2.2%
Mn  0.6%-0.9%
P  below 0.12%
S  below 0.12%
Cr   0.2%-0.6%
Cu 0.4%-0.8%

2. Friction surface hardness value: HB170-241
    Dynamic balance below  2000g.cm

3. Measurement
Brake face dia.:368mm
Over all depth:292mm
Brake face m
Hub pilot dia.:239mm
Flange thickness:13mm
Bolt circle dia.:285.8mm
Dust shield recess dia.:418.8mm
Overall dia.:444.5mm
Bolt hole No.-Dia.: 10x23.6mm, 5x14.29mm,



Package:
1.Qunatiy: 16 pcs per pallet
2.Package: wood Pallet ; waterproof membrane;reinforce the package with metal straps
